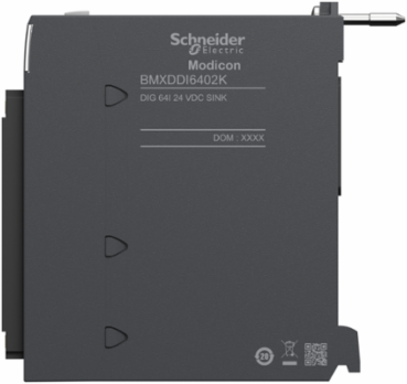

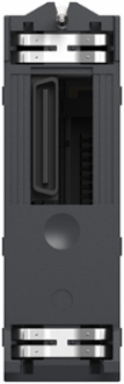

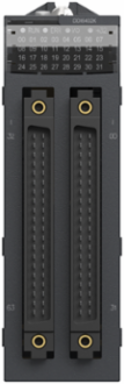

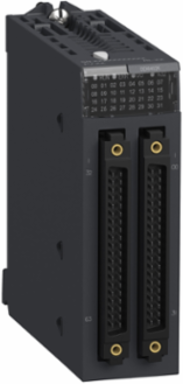

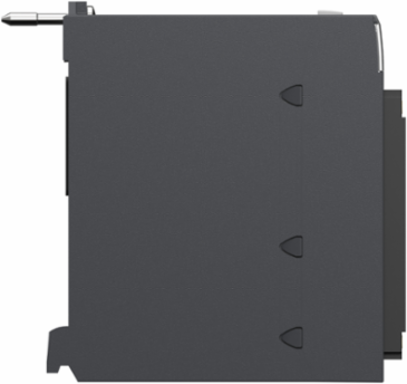

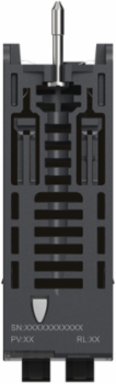

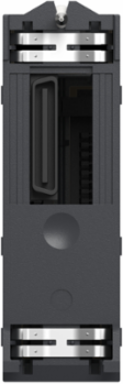

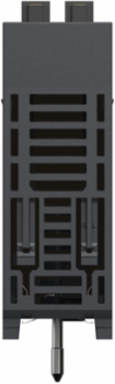

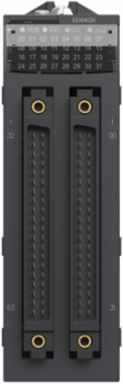

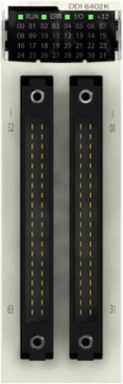

Schneider Electric BMXDDI6402K Modicon X80 Discrete Input Module, 64 Inputs, 24V DC

  • MPN: BMXDDI6402K
  • PPN: SCH-BMXDDI6402K
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1502.71

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 64 inputs with sink (positive) logic. It is an input module with an input voltage of 24V DC, a current consumption of 200mA at 3.3V DC and a power dissipation of 4.3W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow and without reverse polarity protection type. It offers 362681 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, United States
    Depth86 mm

    Complementary Attributes

    Dc Maximum Filtering Time7 ms

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Dielectric Strength1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels
    Local Signalling1 LED (green) for +32 channels indicator, 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
    Voltage Detection Threshold< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3371406061
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]24 kg CO2 eq., 24.2762424242
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Dc Maximum Filtering Time7 ms
    Hot Swapping Fallbackyes
    Mtbf Reliability510000 H
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    ReturnabilityYes
    Shock Resistance30 gn
    Sustainable PackagingYes
    Typical Current Consumption160 mA DC
    Voltage State 0 Guaranteed<= 4 V<= 4 V
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Height Nominal134.6 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    MarkingCE, UKCA, cULus, RCM, EAC
    Carbon Footprint Of The Distribution Phase [A4]0.0248450909, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0505929697, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]27 kg CO2 eq., 27.1406748603
    Local Publishable Date2026-03-25
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Dc Typical Filtering Time4 ms
    Isolation Between Channels And Bus1500 V for 1 minute
    Power Dissipation In W4.3 W
    Product Or Component Typediscrete input module
    Range Of ProductModicon X80
    Sensor Power Supply19-30 V
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint52 kg CO2 eq.
    Vibration Resistance3 gn
    Voltage State 1 Guaranteed>= 15 V>= 15 V
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Width Nominal32 mm
    Package Weight(Lbs)180.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint51.8294959512
    Ambient Air Temperature For Storage-40-85 °C-40-85 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typediscrete input module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001419
    ETIM 9EC001419

    Surge Protection And Filtering Attributes

    Dc Typical Filtering Time4 ms

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Discrete Input Current0.6 mA at 24 V DC
    Discrete Input Numberisolated at 24 V DC64
    Input Impedance40000 Ohm
    Discrete Input Logicpositive logic (sink)
    Discrete Input Voltage24 V DCisolated
    Paralleling Of Inputsno
