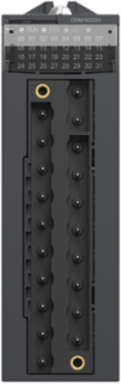

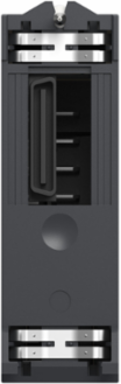

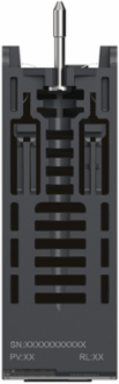

Schneider Electric BMXDDM16022H Discrete I/O Module 8 Inputs 24V DC 8 Outputs Solid State for Severe Environments
- MPN: BMXDDM16022H
- PPN: SCH-BMXDDM16022H
CAD
$798.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This discrete I/O module from Schneider Electric is engineered to excel in severe environments, making it ideal for robust industrial applications. With 8 inputs and 8 solid-state outputs, it delivers reliable performance and flexibility for controlling various processes. The 24V DC operation ensures compatibility with standard control systems, while its rugged design offers enhanced durability and resistance in demanding settings. This module not only simplifies integration into existing systems but also enhances the overall functionality of your automation setup.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United States |
|---|
Complementary Attributes
| Maximum Voltage Drop | <1.2 V at state 1, <1.2 V at state 1<1.2 V at state 1, <1.2 V at state 1 |
|---|---|
| Maximum Current Per Module | 5 A 60 °C4.4 A 70 °C |
| Dc Maximum Filtering Time | 7 ms |
|---|---|
| Maximum Overload Time | 15 ms |
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current Consumption | <= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 67 mA 24 V DC, <= 67 mA 24 V DC, <= 67 mA 24 V DC<= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 111 mA 3.3 V DC, <= 67 mA 24 V DC, <= 67 mA 24 V DC |
| Environmental Characteristic | gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2 |
| Load Impedance Ohmic | >= 48 Ohm, >= 48 Ohm |
| Voltage Detection Threshold | < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.2679380606 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 19 kg CO2 eq., 19.2932242424 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311046EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Per Channel | 0.55 A 70 °C0.625 A 60 °C |
| Dc Typical Filtering Time | 4 ms |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | conformal coating |
| Returnability | No |
| Software Version | v5.9.4 |
| Switching Frequency | 0.5/LI² Hz |
| Pep Code | ENVPEP2311046EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Dielectric Strength | 1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic, 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of inputs and outputs |
| Insulation Resistance | > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC |
| Protection Type | 1 external fuse per group of input channel 0.5 A fast blow, overvoltage protection on output, reverse polarity protection on input, reverse polarity protection on output |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0197453091, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.04020809700000001, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 13.4007088643 |
| Local Publishable Date | 2026-03-10 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Dc Maximum Filtering Time | 7 ms |
| Mtbf Reliability | 450000 H |
| Product Or Component Type | discrete I/O module |
| Range Of Product | Modicon X80 |
| Reverse Polarity Protection | reverse mounted diode |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 33 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 3 |
| Package Weight(Lbs) | 151.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2311046EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 33.0218245734 |
| Environmental Disclosure | ENVPEP2311046EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | discrete I/O module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001419 |
|---|
| ETIM 9 | EC001419 |
|---|
Output Attributes
| Paralleling Of Outputs | yes : 2 maximum |
|---|
| Response Time On Output | 1.2 ms |
|---|
Surge Protection And Filtering Attributes
| Dc Typical Filtering Time | 4 ms |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Number | 8 |
|---|
| Input Impedance | 6800 Ohm |
|---|
