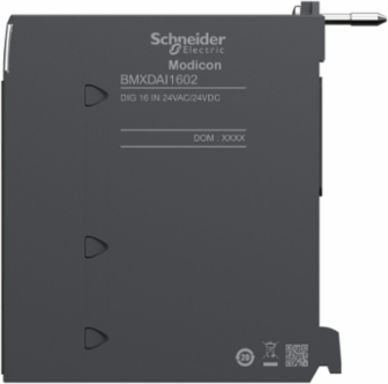

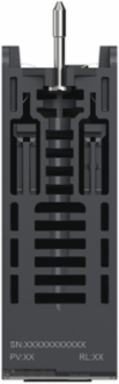

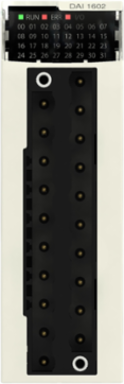

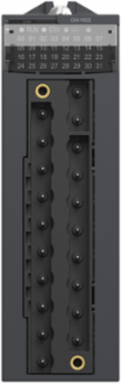

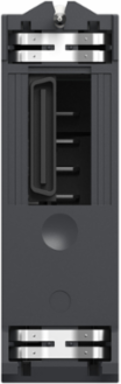

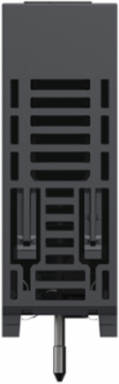

Schneider Electric BMXDAI1602 Modicon X80 Discrete Input Module 16 Inputs 24V AC/DC IP20
- MPN: BMXDAI1602
- PPN: SCH-BMXDAI1602
CAD
$636.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth86 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
- Current State 1 Guaranteed
- >= 2 mA AC, >= 2 mA AC, >= 2 mA DC, >= 2 mA DC>= 2 mA AC, >= 2 mA AC, >= 2 mA DC
- Local Signalling
- 1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
- Sensor Power Supply
- 20-26 V, 19-30 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0179146182, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0364801939, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 13 kg CO2 eq., 12.8918199067
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Ac Deactivation Filtering Time
- 20 ms
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, primary/secondary
- Mtbf Reliability
- 1125000 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- standard version
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Voltage State 1 Guaranteed
- >= 15 V>= 15 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential, In %
- 3
- Width Nominal
- 32 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current State 0 Guaranteed<= 1 mA AC, <= 1 mA AC, <= 0.5 mA DC, <= 0.5 mA DC<= 1 mA AC, <= 1 mA AC, <= 0.5 mA DC, <= 0.5 mA DC
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
MarkingCE, UKCA, cULus, EAC, RCM
Voltage Detection Threshold< 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK< 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2430961212
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.5044484848
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Ac Activation Filtering Time15 ms
Device ApplicationIndustrial Application
Isolation Between Channels And Bus1500 V for 1 minute
Power Dissipation In W3 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Shock Resistance30 gn
Sustainable PackagingYes
Typical Current Consumption76 mA DC
Voltage State 0 Guaranteed<= 5 V<= 5 V
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal103.7 mm
Certificate AgencyIEC 61131-2
Package Weight(Lbs)137.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 30.6937593249
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Operating Altitude0...6561.68 ft (0...2000 m), 2000...5000 m with derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 3 mA at 24 V AC, 3.9 mA at 24 V DC
- Discrete Input Number
- 16 isolated conforming to IEC 60947-5-2 at 24 V AC, 16 isolated conforming to IEC 61131-2 Type 1 at 24 V DC, 16
- Discrete Input Logic
- positive logic (sink)
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Frequency50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
Discrete Input Voltage24 V ACisolated, 24 V DC
Input Impedance6 kOhm
Paralleling Of Inputsno
