Schneider Electric XESD2201 Harmony XAC Double Contact Block, 3-Pole, 3 NO, Spring Return, 200g
- MPN: XESD2201
- PPN: SCH-XESD2201
CAD
$364.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

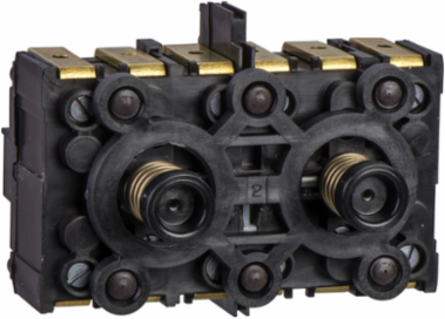

This contact block is a separate component of the range of pendant control stations Harmony XAC. It consists in a double block 3-pole with 2 spring return operators mechanically interlocked (operator centres 40 mm). It features 3 NO functions and and screw clamp connection type. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XACB pendant control stations (front mounting). It weighs 200g. It is designed for power circuits simple speed applications.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Of Block
- front mounting
- Contact Block Type
- double
- Contact Block Application
- single speed
- Contacts Type And Composition
- 3 NO
- Mechanical Interlocking
- with mechanical interlocking
- Type Of Operator
- 2 spring return
- Product Compatibility
- XACB
Range Of ProductHarmony XAC
Product Or Component Typecontact block
Component NameXESD
Contact Operationsnap action
Poles Description3-pole
Electrical Circuit Typepower circuit
Complementary
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Terminals Description Iso N°1
- (23-24)NO || B || (33-34)NO || (13-14)NO
- [Ithe] Conventional Enclosed Thermal Current
- 20 A
- Net Weight
- 0.2 kg
- Electrical Durability
- 1000000 cycles AC-3, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 1000000 cycles AC-4, 3000 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-3, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 700000 cycles AC-4, 3000 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
- [Ui] Rated Insulation Voltage
- 300 VCSA
- Rated Power In Hp
- 3 hp 240 V
- Rated Operational Power In W
- 3000 W AC-3 240 V || 3000 W AC-4 400 V
Terminals Description Iso N°2(53-54)NO || B || (63-64)NO || (73-74)NO
Horizontal Fixing Centres40 mm
Short-Circuit Protection12 A fuse protection cartridge aM
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Mechanical Durability1000000 cycles
Operating Force32 N
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsIEC 60947-3 || EN 60947-3 || CSA C22.2 No 14
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
