Schneider Electric XESD1281 Harmony XAC Double Contact Block, 2-Speed, Spring Return, 0.19 kg
- MPN: XESD1281
- PPN: SCH-XESD1281
CAD
$196.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

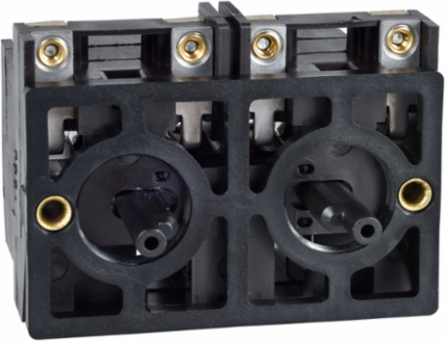

This Harmony XAC, double contact block uses screw-clamp terminals and has 1 x NO + 1 changeover contact SPDT single pole double throw. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- Designed specifically for seamless front mounting, the Schneider Electric Harmony XAC double contact block offers direct drop-in compatibility with XACB and XACM industrial pendant enclosures. This guarantees a perfect physical fit and hassle-free replacement, eliminating alignment issues or aftermarket modifications so you can restore your heavy-duty hoisting and material handling systems with zero downtime.
- This unit features a specialized 1 C/O (changeover SPDT) plus 1 NO contact composition engineered with a staggered snap-action layout for precise two-speed machinery control. It allows crane operators to easily step up from precise, low-speed positioning to maximum acceleration without unexpected command overlapping, resulting in smoother motor control and enhanced workplace safety.
- Engineered for high-frequency operations, this robust industrial control component boasts a mechanical durability rating of 1,000,000 switching cycles and can manage up to 3,600 operating cycles per hour. This industrial-grade endurance drastically reduces the frequency of routine maintenance shutdowns and prevents premature contact failure under demanding multi-shift warehouse and factory environments.
- With an expansive operating temperature range from -25 C to 70 C, this block delivers reliable connectivity inside freezing unheated terminals or high-heat manufacturing facilities. Furthermore, its rugged structural housing offers a 15 gn vibration resistance and 100 gn mechanical shock threshold, ensuring electrical connections remain completely stable on high-impact machinery.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United States |
|---|
Complementary Attributes
| Rated Operational Power In W | 140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C, 140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C |
|---|---|
| Rated Operational Power In Va | 100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive750 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive |
| Maximum Resistance Across Terminals | 25 MOhm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contact Operation | staggered, snap action |
| Terminal Identifier | (13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Terminals Description Iso N°2 | (43-44)NO_CL, (23-24-21-22)OF, (43-44)NO_CL, (23-24-21-22)OF, B |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.1621013986 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.9 kg CO2 eq., 0.8885893551 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Component Name | XESD |
| Contact Block Type | double |
| Contacts Type And Composition | 1 C/O + 1 NO |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Mechanical Interlocking | with mechanical interlocking |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XAC |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Type Of Operator | 2 spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Czech Republic |
| Energy Model - Use [B6] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Recyclability Potential In % | 32 |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 |
| Short-circuit Protection | 10 A fuse protection cartridge gG |
| Package Weight(Lbs) | 185.0 g |
| Warranty (In Months) | 18 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 1.477 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.315 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Force | 15 N, 25 N |
| Certificate Agency | CSA C22.2 No 14, IEC 60947-5-1 |
| Terminals Description Iso N°1 | (33-34)NO_CL, (13-14-11-12)OF, B, (33-34)NO_CL, (13-14-11-12)OF |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0375419192, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0008947129, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.08962 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Block Application | 2-speed |
| Contact Code Designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AQ300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Electrical Circuit Type | control circuit |
| Mechanical Durability | 1000000 cycles |
| Mounting Of Block | front mounting |
| Product Or Component Type | contact block |
| Returnability | Yes |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Vibration Resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP0709005EN |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Energy Model - End Of Life [C1-c4] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.315 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.315 |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Product Compatibility | XACB, XACM |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0709005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0709005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.1787473858 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | contact block |
|---|
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
