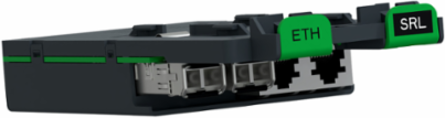

Schneider Electric REL51049 combined module of ethernet HSR/PRP 2*LC fiber optic + RS485 2*RJ45 for slots MN - accessory for PowerLogic P5

Plug and play communication module for Schneider Electric's PowerLogic P5 withdrawable protection and control relay. This serial line communication module offers RS485 connection to PowerLogic P5. This Ethernet fiber optic communication module enables HSR or PRP redundancy and PTP capabilities to PowerLogic P5. It can be installed to PowerLogic P5 any time: during installation, commissioning or even during maintenance. Plug and play communication modules allow late versionizing for Partners and assure evolutivity of communication profile. This plug and play communication module offers 2 ports 100 Base FX, 100 Mbit per second, multimode glass fiber of 1300 nm wavelenght, LC connection. As well as 2 ports RJ45 suitable for EIA 2-wire RS485 or EIA 4-wire RS485 standard connection. It ensures High-availability Seamless Redundancy protocol (HSR) or Parallel Redundancy Protocol (PRP). Also enables Precision-Time-Protocol compliant to IEEE 1588-2008v2 and ensures serial RS485 communication interface. Product dimensions: height 176 mm (6.93 in), width 170,6 mm (6.69 in), depth 26,3 mm (1.02 in). Net weight of 120 g (0.265 lbs). PowerLogic P5 is compliant with EN 60255-26, EN 60255-27 standard and with UL Standard. It provides Marine certification. This product can be installed in slots M and N of the PowerLogic P5 protection relay.
