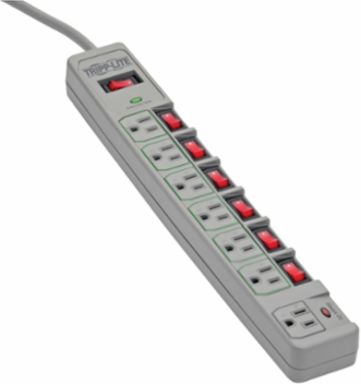

Tripp Lite TLP76MSG Eco-Surge 7-Outlet Surge Protector, 6 Ft Cord, 1080 Joules, 1800 Watts
- MPN: TLP76MSG
- UPC: 037332166074
- PPN: TRP-TLP76MSG
CAD
$78.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Eco-Surge 7-Outlet Surge Protector, 6 Ft Cord, 1080 Joules, 1800 Watts
Features
- Individual outlet control
- 1080 joules
- 7 outlet / 6-ft cord
- Diagnostic LEDs
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $25,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 1080
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression.
- UL1449 Let Through Rating
- 400v
- Automatic Shut-Off
- Yes
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 40 dB
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3rd Edition
- Canada
- cUL
UL1363 (Power Tap)UL1363
ApprovalsExceeds IEEE 587 category A&B specifications
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Gray
- Material of Construction
- Plastic
- Shipping Dimensions (hwd / in.)
- 2.00 x 4.20 x 17.00
- Unit Dimensions (hwd / in.)
- 1.40 x 3.40 x 15
ColorGray
Integrated Keyhole Mounting SlotsYes
Receptacle ColorGray
Shipping Weight (lbs.)1.80
Unit Weight (lbs.)1.54
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- LED Indicators

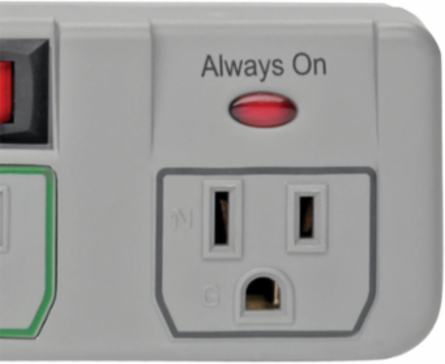

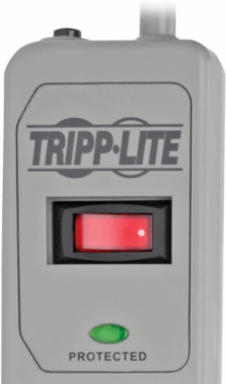

- Protected (Green)" & Always On Receptacle (Red)
Switches1 x Lighted Master Switch & 6 x Lighted Receptacle Switches
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 72000
- Input Cord Length (ft.)
- 6
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120

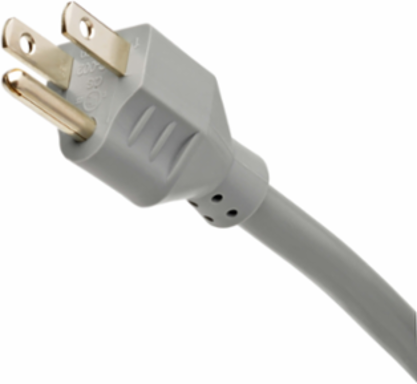

Input Plug TypeNEMA 5-15P
Right-Angle PlugNo
Output
- Output Volt Amp Capacity (VA)
- 120
- Frequency Compatibility
- 60 Hz
- Output Receptacles
- (7) 5-15R
- Right-Angle Outlets
- Yes
Output Watt Capacity (Watts)1800
Output (Watts)1800
Transformer Accommodation(4) Yes
Individually Controllable Load BanksYes
Overview
- UPC Code
- 037332166074
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$25,000 Ultimate Lifetime Insurance
