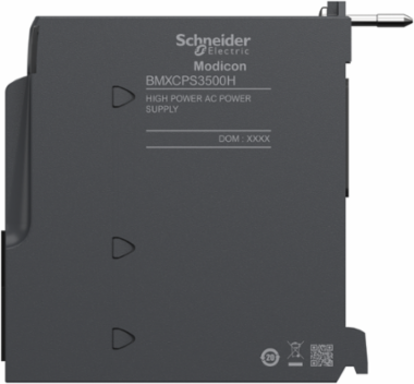

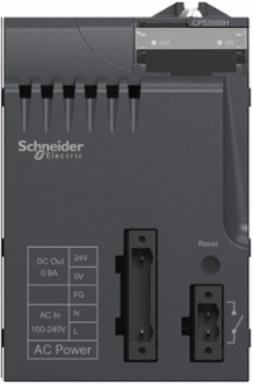

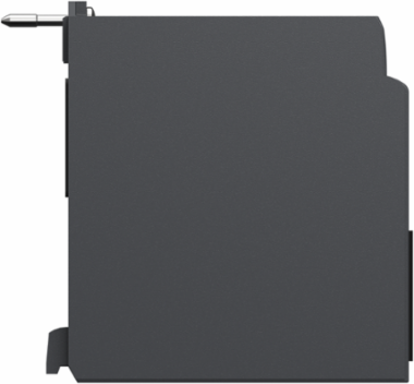

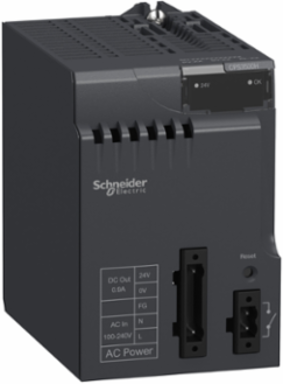

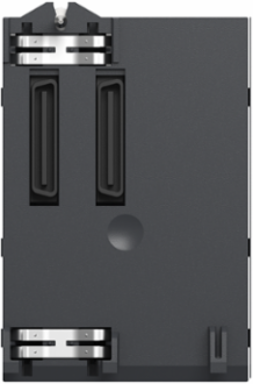

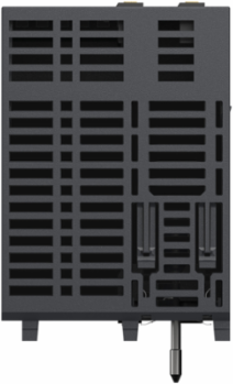

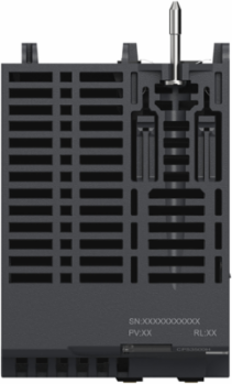

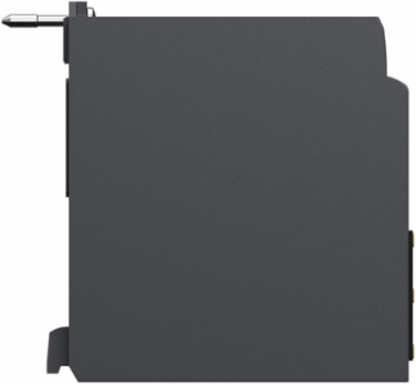

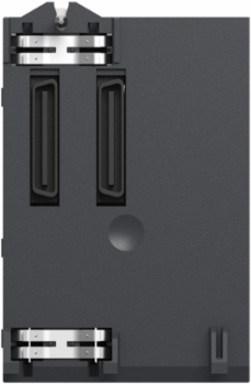

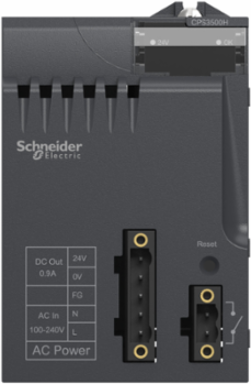

Schneider Electric BMXCPS3500H Modicon X80 Power Supply Module 100-240V AC 36W IP20
- MPN: BMXCPS3500H
- PPN: SCH-BMXCPS3500H
CAD
$1655.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Complementary Attributes
- Maximum Power Dissipation In W
- 8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 0.9 A 24 V DC sensor power supply1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Protection Type
- internal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
- Status Led
- 1 LED (Green) rack voltage OK, 1 LED (Green) sensor voltage
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0653826530612244, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2432551020408163, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 451 kg CO2 eq., 450.6399999999999
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Type
- RESET push-button cold restart
- Immunity To Microbreaks
- 1 ms
- It On Activation
- 0.05 A.s 120 V0.07 A.s 240 V
- Network Frequency
- 50/60 Hz
- Primary Voltage
- 100...240 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
- Shock Resistance
- 30 gn
- Supply Circuit Type
- AC
- Total Lifecycle Carbon Footprint
- 457 kg CO2 eq.
- Pep Code
- ENVPEP2402022EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In %
- 1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 3.0466
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 206.49
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1067.1
- Customs Code
- 8504409540
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor2300 V primary/secondary sensor power supply, 1500 V primary/ground500 V 24 V sensor output/ground
Insulation Resistance>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Secondary Power15 W 3.3 V DC 0-60 °C I/O module logic power supply, 31.2 W 24 V DC 0-60 °C I/O module power supply and processor11.3 W 3.3 V DC -25-70 °C I/O module logic power supply, 23.4 W 24 V DC -25-70 °C I/O module power supply and processor21.6 W 24 V DC 0-60 °C sensor power supply, 16.2 W 24 V DC -25-70 °C sensor power supply
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.6925204081632653
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 5.801734693877551
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402022EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Apparent Power0.12 kVA
Electrical Connection1 connector 2 alarm relay1 connector 5 line supply, protective earth, 24 V DC input sensor
Inrush Current30 A 120 V60 A 240 V
Mtbf Reliability4300000 H
Network Frequency Limits47-63 Hz
Primary Voltage Limit85...264 V
Product Or Component Typepower supply module
Protective Treatmentconformal coating
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingYes
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe power supply provides power to the modules on a M340 or M580 rack (main or drop) with a primary voltage of 100V to 240V AC , a secondary power of 31.2W at 24V DC and a maximum power dissipation of 8.5W.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh670.14
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
I²T On Activation1 A².s 120 V3 A².s 240 V
Package Weight(Lbs)540.000 g
Warranty (In Months)18
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.4595
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.1076
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1067.1
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2402022EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402022EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint457.4428928571427
Environmental DisclosureENVPEP2402022EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product Compatibilitynot compatible with BMEXBP..02
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC000599
ETIM 9EC000599
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 0.52 A 240 V1.04 A 115 V
