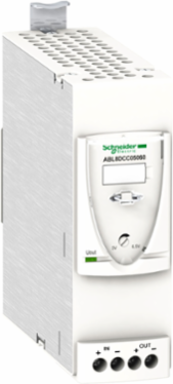

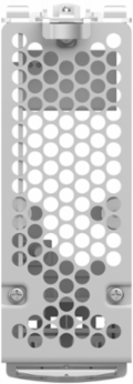

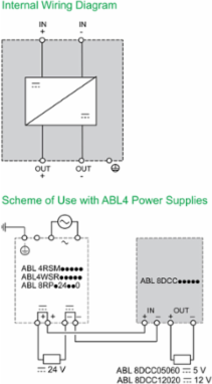

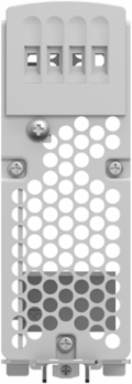

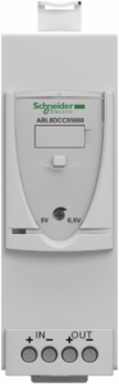

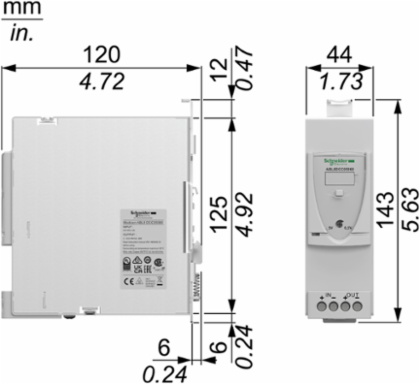

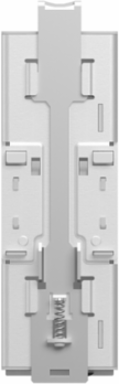

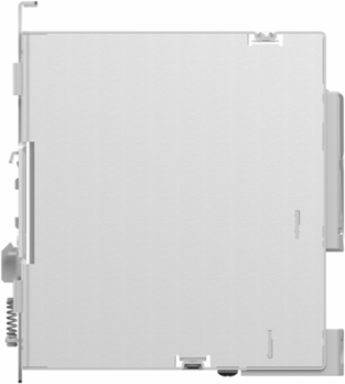

Schneider Electric ABL8DCC05060 Converter Module 30W 24-28.8V DC 5V DC 6A for Industrial Power Supplies
- MPN: ABL8DCC05060
- PPN: SCH-ABL8DCC05060
- UNSPSC: 39121022
CAD
$188.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 0.25A at 5V DC and a rated power output of 30W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Wide output voltage adjustment
- Instant fault diagnosis thanks to front side LED indicators
- Adjust the output voltage with a rotary trimmer
- No additional protection required on input side
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Philippines |
|---|
| Weight | 624 g |
|---|
Complementary Attributes
| Rated Power In W | 30 W |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Dielectric Strength | 500 V between input and ground, 500 V between input and output, 500 V between output and ground |
| Fixing Mode | by clips 35 mm symmetrical DIN rail horizontal with derating to 40 %, by clips 35 mm symmetrical DIN rail vertical |
| Residual Ripple | <= 100 mV, <= 100 mV |
| Certificate Agency | EAC, cCSAus, RCM, UL |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1.164004784519576, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 16.836294028045153 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI120913EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1909 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Compatibility Code | ABL8D |
| Line And Load Regulation | 1...3 % |
| Mtbf Reliability | 1511725 H at 24 V DC with UTE C80-810 calculation method |
| Power Dissipation In W | 7 W |
| Product Or Component Type | converter module |
| Returnability | No |
| Sustainable Packaging | No |
| Vibration Resistance | 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-23.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2 |
| Database Version | 2024-01 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To protect and ensure service continuity of an electrical system in industrial atmosphere 34% of the time for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 40 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Environmental Characteristic | EMC conforming to EN 50081-1, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2safety conforming to IEC 60950-1, safety conforming to IEC 61204 |
| Name Of Test | induced electromagnetic field conforming to IEC 61000-4-6 level 3radiated electromagnetic field conforming to IEC 61000-4-3 level 3rapid transient conforming to IEC 61000-4-4 level 3, surge conforming to IEC 61000-4-5 level 2conducted/radiated emissions conforming to EN 55022 Class Belectrostatic discharges conforming to IEC 61000-4-2emission conforming to IEC 61000-6-3 |
| Connections Terminals | for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² 24 AWG...10 AWG, for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² 24 AWG...10 AWG |
| Carbon Footprint Of The Distribution Phase A4 | 0.3281133284091029, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2 kg CO2 eq., 0.18527344700589943 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 94 kg CO2 eq., 94.4810221371356 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Efficiency | 80 % |
| Local Signalling | 1 LED (green) for output voltage (> 4 V) |
| Overvoltage Category | class 3 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Phaseo Universal |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 113 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Customs Code | 8504409580 |
| Packaging Weight In G | 62.4 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Relative Humidity | 0-90 % during operation, 0-95 % during storage |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI120913EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP061201EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 112.99470772511533 |
| Environmental Disclosure | ENVPEP061201EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | converter module |
|---|
| Range Of Product | Phaseo Universal |
|---|
ETIM
| ETIM 8 | EC002540 |
|---|---|
| ETIM 10 | EC002540 |
| ETIM 9 | EC002540 |
|---|
Output Attributes
| Output Protection Type | against overload, protection technology: automatic resetagainst overvoltage, protection technology: tripping if U > 7.8 V, automatic reset, against short-circuits, protection technology: automatic reset |
|---|---|
| Output Voltage Limits | 5...6.5 V |
| Output Voltage | 5 V DC |
|---|---|
| Power Supply Output Current | 6 A |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Efficiency | 80 % |
|---|---|
| Input Voltage | 24...28.8 V DC |
| Input Protection Type | against reverse polarity |
|---|---|
| Input Voltage Limits | 22...30 V |
