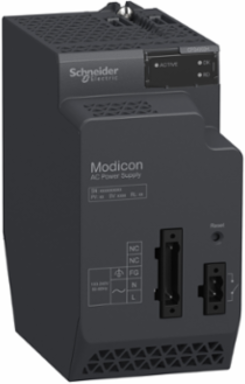

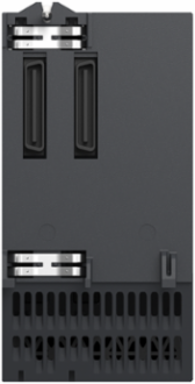

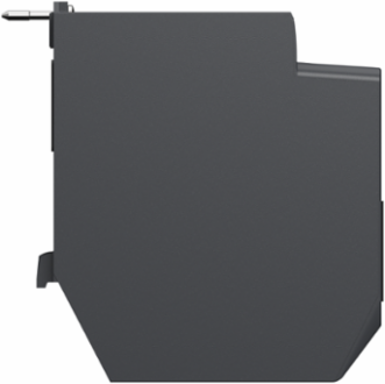

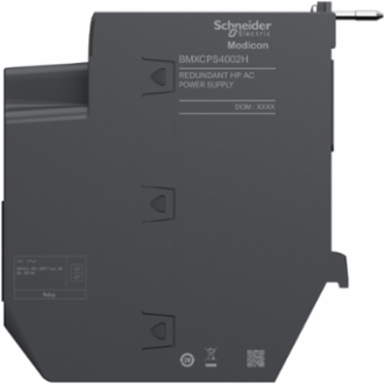

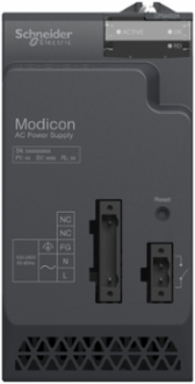

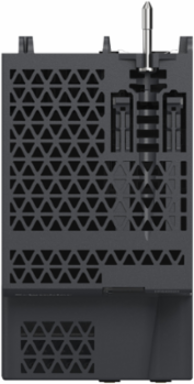

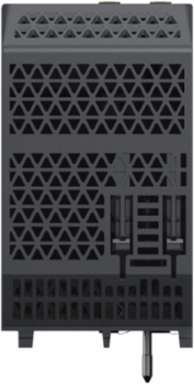

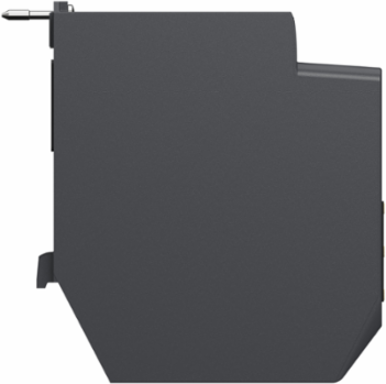

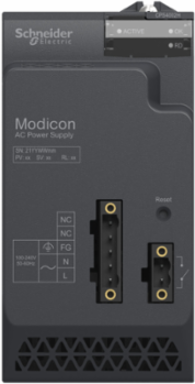

Schneider Electric BMXCPS4002H Modicon X80 Power Supply Module 100-240V AC, 40W, IP20
- MPN: BMXCPS4002H
- PPN: SCH-BMXCPS4002H
CAD
$2436.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Sweden
Complementary Attributes
- Maximum Power Dissipation In W
- 8.5 W
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current At Secondary Voltage
- 5.5 A 3.3 V DC I/O module logic power supply, 1.67 A 24 V DC I/O module power supply and processor
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Insulation Resistance
- >= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary, >= 100 MOhm primary/secondary>= 100 MOhm primary/ground, >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
- Status Led
- 1 LED (Green) presence of voltages (OK), 1 LED (Green) redundancy OK, 1 LED (Green) power supply status
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9470359136739728, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.005922770498387473, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 467 kg CO2 eq., 467.2337794379028
- Local Publishable Date
- 2026-04-04
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Type
- RESET push-button cold restart
- Immunity To Microbreaks
- 1 ms
- It On Activation
- 0.05 A.s 120 V0.07 A.s 240 V
- Network Frequency
- 50/60 Hz
- Primary Voltage
- 100...240 V
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
- Secondary Power
- 18 W 3.3 V DC -25-70 °C I/O module logic power supply40 W 24 V DC -25-70 °C I/O module power supply and processor if 3.3 V not loaded
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 3 gn
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide power to a Modicon X80 controller during 10 years and at 90% use rate, in accordance with relevant safety and performance standards.To provide power to a Modicon X80 platform during 10 years with a 90% use rate, in accordance with relevant safety and performance standards.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 670.14
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; United States, US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; United States, US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504407001
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor2300 V primary/secondary sensor power supply, 1500 V primary/ground500 V 24 V sensor output/ground
Function Availableremaining lifetime, temperature sensing, redundancy test, redundancy information, uptime duration
Protection Typeinternal fuse not accessible primary circuitoverload protection secondary circuit, overvoltage protection secondary circuit, short-circuit protection secondary circuit
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.4414198113750236
Carbon Footprint Of The Manufacturing Phase [A1 To A3]26 kg CO2 eq., 25.55447502170535
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2410045EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Apparent Power0.13 kVA
Electrical Connection1 connector 2 alarm relay1 connector 5 line supply, protective earth
Inrush Current30 A 120 V60 A 240 V
Mtbf Reliability792000 H
Network Frequency Limits47-63 Hz
Primary Voltage Limit85...264 V
Product Or Component Typepower supply module
Protective Treatmentconformal coating
ReturnabilityYes
Shock Resistance30 gn
Supply Circuit TypeAC
Total Lifecycle Carbon Footprint495 kg CO2 eq.
Pep CodeENVPEP2410045EN
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; United States, US
I²T On Activation1 A².s 120 V3 A².s 240 V
Package Weight(Lbs)615.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2410045EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410045EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint495.1826329551555
Environmental DisclosureENVPEP2410045EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product Compatibilityall backplane
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2024-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power supply module
Range Of ProductModicon X80
