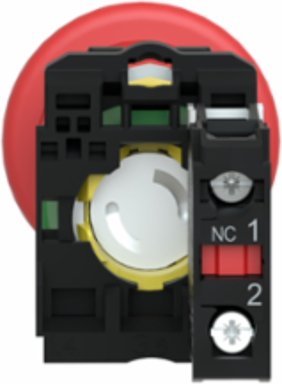

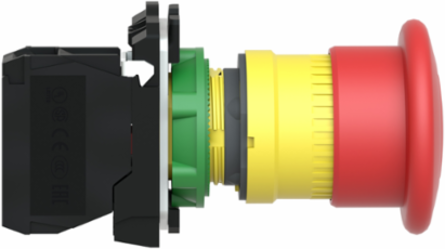

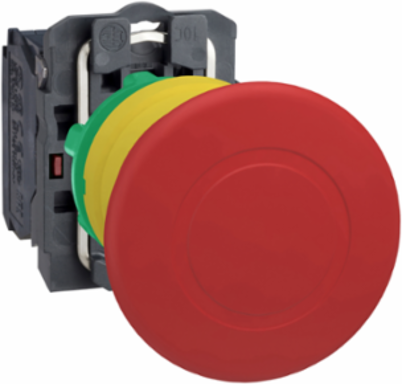

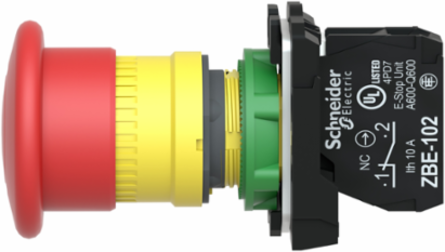

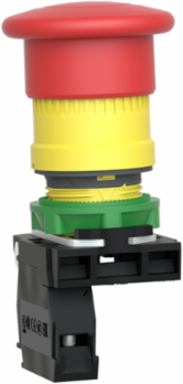

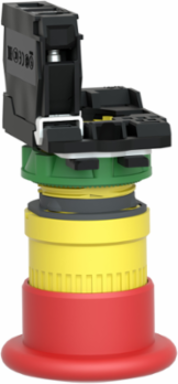

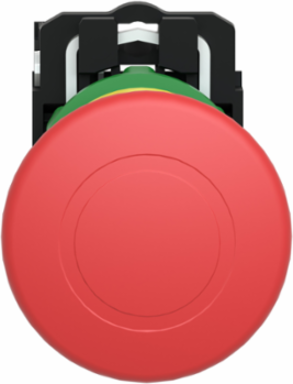

Schneider Electric XB5AT842 Harmony XB5 Emergency Stop Push Button 40mm Mushroom Head, 22mm Diameter
- MPN: XB5AT842
- PPN: SCH-XB5AT842
CAD
$65.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|

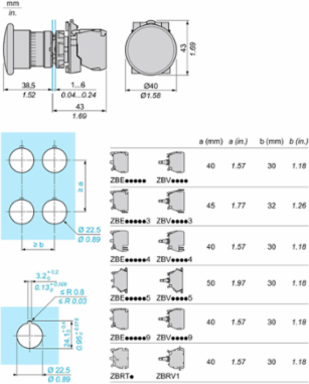

| Depth | 82 mm |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contacts Usage | standard contacts, standard contacts |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Product Or Component Type | emergency stop push-button, emergency switching off push-button |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.008369176, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0156737018, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.077733 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308012EN |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 13 % |
| Compatibility Code | XB5 |
| Contacts Material | silver alloy (Ag/Ni) |
| Device Short Name | XB5 |
| Head Type | standard |
| Mounting Diameter | 22 mm |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Repair Index | A |
| Range Of Product | Harmony XB5 |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | trigger action and mechanical latching |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2308012EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Height Nominal | 43 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 1.1608 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.6553 |
| Customs Code | 8536509035 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 0, no |
| Electrical Reliability | λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Reset | push-pull, push-pull |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| Terminals Description Iso N°1 | (11-12)NC, (11-12)NC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1065860113 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.4887072167 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 22 % |
| Bezel Material | dark grey plastic |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NC |
| Fixing Collar Material | plastic |
| Mechanical Durability | 300000 cycles |
| Operating Travel | 1.5 mm NC changing electrical state)4.3 mm total travel) |
| Overvoltage Category | class II conforming to IEC 60536 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0.7 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Contacts Composition 6 | 1 NC |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Emergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1. |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Width Nominal | 40 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | red |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 64.000 g |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.4501 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.4501 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.4501 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 22 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.6970691059 |
| Environmental Disclosure | ENVPEP2308012EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2308012EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308012EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | emergency stop push-button, emergency switching off push-button |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC002034 |
|---|
| ETIM 9 | EC002034 |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
