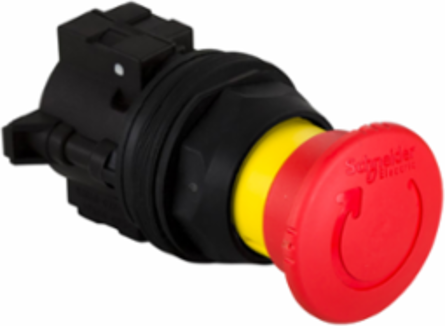

Schneider Electric 9001SKR16 Emergency Stop Head, 30 mm Mushroom Button, IP66, Red, 40 mm
- MPN: 9001SKR16
- UPC: 785901582021
- PPN: SCH-9001SKR16
CAD
$168.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30mm diameter cut-outs It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes
- Cad Overall Depth
- 90 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Size30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operator Profile
- mushroom Ø 40 mm, red mushroom Ø 40 mm, CE
- Certificate Agency
- NEMA, UL listed file E78403 CCN NKCR, CSA LR25490 class 3211 03, UL 508
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- plastic
- Contacts Type And Composition
- without contact block
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Mounting Diameter
- 30 mm
- Operator Position Information
- 2 positions
- Product Or Component Type
- head for emergency switching off push-button
- Range Of Product
- Harmony 9001SK
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 86.182 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Type Of Operatortrigger action, maintained, turn to release
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Code9001SK
Device Short Name9001SK
Mechanical Durability5000000 cycles
Operating Positionany position
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityNo
Shock Resistance50 gn IEC 60068-2-27
Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2503027EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for emergency switching off push-button
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
