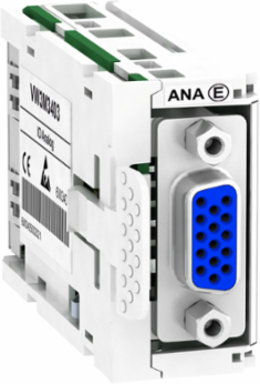

Schneider Electric VW3M3403 Encoder Interface Module for Lexium 32 with Analog Output, 12V/5V

MPN: VW3M3403
PPN: SCH-VW3M3403
UNSPSC: 26111515

$280.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric VW3M3403 Encoder Interface Module is a vital component for optimizing performance in applications utilizing the Lexium 32 servo drives. Designed specifically for seamless integration, this module provides reliable analog output capabilities at both 12V and 5V levels, enabling precise motion control and efficient automation processes. With its robust engineering, it supports a variety of industrial applications, enhancing the reliability and precision of your systems in automation and control environments. This interface module is essential for those looking to elevate their servo drive performance and streamline their motion control setups.

Features

Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
A speed bandwidth of 1,600Hz provides outstanding response
Rapid installation and maintenance with removable, colour-coded connectors

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	57 g

Complementary Attributes

Us Rated Supply Voltage	12 V Hiperface5 V 1 Vpp, 5 V 1 Vpp/Hall

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Encoder Type	1 Vpp, 1 Vpp/Hall, Hiperface
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.036149187658205885
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 3.5459284812086076
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1407005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Electrical Connection	1 female connector high definition SUB-D 15
Product Or Component Type	encoder interface module
Returnability	No
Sustainable Packaging	No
Database Version	2024-01
Accessory / Separate Part Category	connection accessories
Accessory / Separate Part Type	card with analog output
Customs Code	8504909690
Functional Unit Description	To integrate communication functionalities to the LXM32 Controller 100% of the time for 10 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	131.4

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase A4	0.009575756318993173, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.03628689065080607, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	92 kg CO2 eq., 92.49542199341025
Local Publishable Date	2026-01-12
Serviceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium 32
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	96 kg CO2 eq.
Data Source	extrapolated product
Accessory / Separate Part Destination	machine and motor encoder
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	96.12336230924686
Environmental Disclosure	ENVPEP1407005EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Lexium 32M
Pep Code	ENVPEP1407005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1407005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-08-28
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
