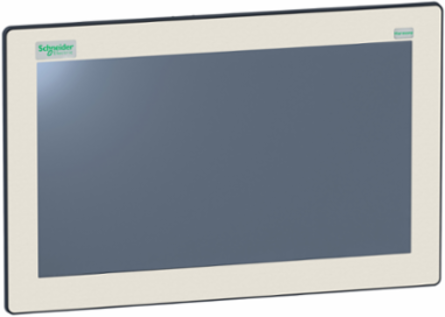

Schneider Electric HMIDT75XFH eXtreme Touchscreen Panel 15.6 Inch Colour TFT LCD, IP66, 12 V DC
- MPN: HMIDT75XFH
- PPN: SCH-HMIDT75XFH
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance in demanding environments, the Schneider Electric HMIDT75XFH eXtreme Touchscreen Panel offers a striking 15.6-inch Colour TFT LCD display designed to excel in automation and control applications. With an impressive IP66 rating, this panel is highly resistant to dust and water, ensuring reliable operation even in harsh industrial settings. Powered by a 12 V DC input, it combines durability and user-friendly interface, making it an ideal choice for PLC, HMI, and data acquisition needs. Its advanced technology enables seamless interaction, providing operators with effective monitoring and control capabilities in a compact and efficient design.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Depth68 mm
Physical Attributes
- Display Size
- 15.6 inch
Display Color262144 colors
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Environmental Characteristic
- 3C3, UV resistant
- Carbon Footprint Of The Distribution Phase [A4]
- 0.7133226666666667, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.09536, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 513 kg CO2 eq., 513.0340909090909
- Local Publishable Date
- 2026-01-28
- Stocking Flag
- Y
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1402016EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2514
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Aspect Ratio
- 4:3
- Display Type
- colour TFT LCD
- Inrush Current
- 30 A
- Pixel Resolution
- 1366 x 768
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony GTUX
- Shock Resistance
- 392 m/s²IEC 61131-2
- Supply Voltage Limits
- 10.8-28.8 V
- Terminal Type
- touchscreen display
- Touch Panel
- single touch analogue resistive
- Type Of Cooling
- natural convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1402016EN
- Pep Verification Date
- 2024-03-13
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 55
- Width Nominal
- 408 mm
- Cut-out Dimensions
- 394 (+ 1/- 0) x 250 (+ 1/- 0) mm
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 3688.64
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 716.224
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -10.9408
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 53.648
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -408.8
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 49.0848
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyKC, CE, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, UKEX
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 5.231039999999999
Carbon Footprint Of The Manufacturing Phase [A1 To A3]274 kg CO2 eq., 273.6213333333333
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Display Resolution1366 x 768 pixels FWXGA
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Luminance1000 cd/m²
Power Consumption In W12.5 W
Product Or Component TypeeXtreme touchscreen panel
ReturnabilityNo
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint794 kg CO2 eq.
Touchscreen Resolution1024 x 1024
Vibration Resistance3.5 mm 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2
Display Color262144 colors
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1095
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal264 mm
[Us] Rated Supply Voltage12 V DC power supply
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)6.261 kg
Take-backNo
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-28.9024
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]217.856
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-92.6976
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]78.4864
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]217.856
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-10.8288
Customs Code8528593370
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C IEC 61131-2, -20-60 °C IEC 61131-2-20-60 °C IEC 61131-2, -20-60 °C IEC 61131-2
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 793.6951469090909
- Circularity Profile
- ENVEOLI1402016EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2024-03-13
- Psr Version
- PSR-0005-ed2-2016 03 29
Ip Degree Of ProtectionIP66f, IP67ffront panel Type 4X
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP1402016EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402016EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- eXtreme touchscreen panel
Range Of ProductHarmony GTUX
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
