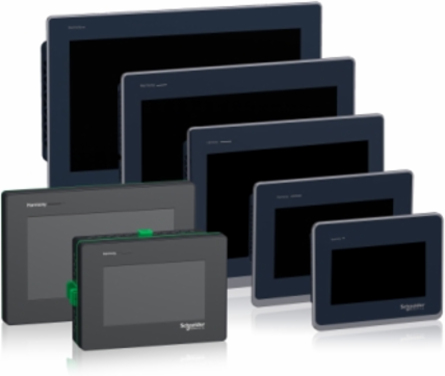

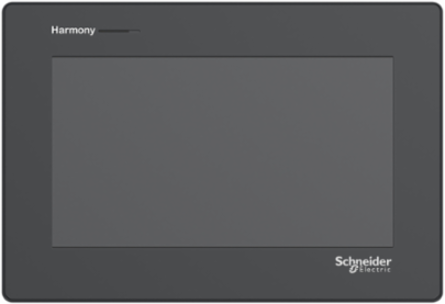

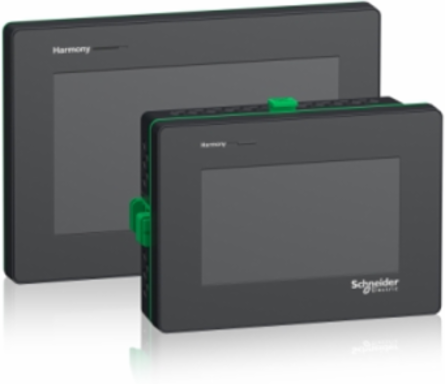

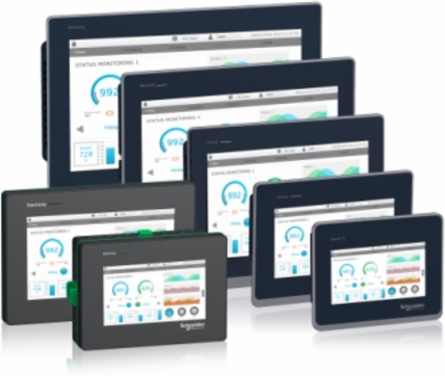

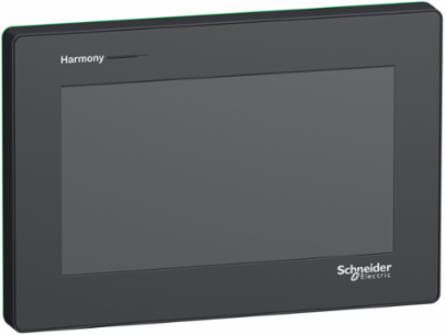

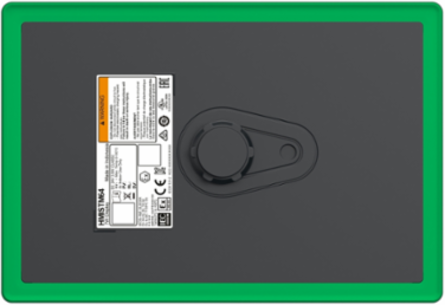

Schneider Electric HMISTM64 Harmony ST6 7 Inch Touch Panel Screen, IP65, Colour TFT LCD

MPN: HMISTM64
PPN: SCH-HMISTM64

$2146.71

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered by Schneider Electric, this 7-inch touch panel screen is part of the Harmony series, offering a crisp colour TFT LCD display that enhances user interaction and visibility. With its IP65 rating, it is designed to withstand challenging environments, making it an ideal choice for industrial applications where reliability and durability are essential. This touch panel not only facilitates intuitive control and monitoring but also integrates seamlessly into various operational settings, showcasing Schneider Electric s commitment to innovation and practical design.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United Kingdom, Indonesia, United States

Depth	33 mm

Physical Attributes

Display Size	7 inch

Display Color	16 million colours

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Character Font	ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
Local Signalling	status LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
Vibration Resistance	+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
Carbon Footprint Of The Distribution Phase [A4]	0.0632216877, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0063413209, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	156 kg CO2 eq., 156.0039807692
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	HMI - Graphical display unit
Traceability	Yes
Average Life Duration	7 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2007003EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2518
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Brightness	16 levels
Display Type	colour TFT LCD
Front Material	plastic
Inrush Current	30 A
Number Of Pages	200 application pages
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony ST6
Shock Resistance	147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Sustainable Packaging	No
Touch Panel	single touch analogue resistive
Display Color	16 million colours
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
Height Nominal	137.2 mm
[Us] Rated Supply Voltage	24 V DC +/- 20 %)
F-gas Free	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	697.000 g
Take-back	No
Customs Code	8537109170

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Fixing Mode	Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201, Ø 22 mm hole IEC 61131-2, Ø 22 mm hole IEC 61000-6-2
Realtime Clock	built-in 0...50 °C, built-in 10...90 % RH
Certificate Agency	CE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, DNV, ABS, RINA, BV
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.1350863901
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	98 kg CO2 eq., 97.5727600722
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Display Resolution	800 x 480 pixels WVGA
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
Immunity To Microbreaks	2 ms
Marking	CE
Power Consumption In W	3.6 W
Product Or Component Type	touch panel screen
Returnability	No
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	254 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2007003EN
Pep Verification Date	2020-10-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.4W.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	254.916
Energy Model - Installation [A5]	Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
Width Nominal	201.2 mm
Cut-out Dimensions	Ø 22.5 mm
F-gas Usage Performance	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-20-60 °C, -20-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	253.7813902401
Circularity Profile	ENVEOLI2007003EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP65 IEC 61131-2 front panel)
Operating Altitude	6561.68 ft (2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	10-90 % non-condensing
Pep Verification Date	2020-10-01
Type Of Verification For The Pep	Independent internal review

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
Silicon Free	No
Ambient Air Temperature For Operation	0-50 °C
Environmental Disclosure	ENVPEP2007003EN
Halogen Content Performance	Product contains halogen above thresholds
Nema Degree Of Protection	NEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2007003EN
Pcr Version	PCR-ed3-EN-2015 04 02
