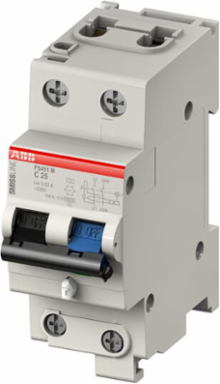

ABB 2CCL462110E0104 FS451M Residual Current Breaker 2 Poles 10A 30mA C Characteristic
- MPN: 2CCL462110E0104
- UPC: 888614369177
- PPN: ABB-2CCL462110E0104
CAD
$548.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FS451M-C10/0,03 Residual Current Circuit Breaker with overcurrent Protection 2 Poles C Characteristic 10A 10000 ~230/400V
Specifications
Installation
- Instructions and Manuals
- 9AKK107680A1666
Dimensions
- Width in Number of Modular Spacings
- 2
- Product Net Height
- 95 mm
- Product Net Weight
- 210 g
- Built-In Depth (t2)
- 91 mm
Product Net Width69 mm
Product Net Depth / Length72 mm
Size2 modules
Dimension Diagram2CCC451027C0106 Ind B
Technical
- Standards
- IEC/EN 61009
- Type of Residual Current
- A Type
- Rated Operational Voltage
- 240 V AC
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Current (In)
- 10 A
- Rated Residual Current
- 30 mA
- Rated Conditional Short-Circuit Current (Inc)
- 10 kA
- Maximum Surge Current
- 0.25 kA
- Frequency (f)
- 50/60 Hz
- Power Loss
- 3.4 W
- Number of Poles
- 2
- Operating Characteristic
- Instantaneous
- Position of Neutral Terminals
- Right
- Release Type
- C
- Accessories Available
- Yes
Tripping CharacteristicC
Rated Voltage (Ur)240 V
Rated Insulation Voltage (Ui)500 V
Input Voltage TypeAC
Rated Operational Current (Ie)10 A
Rated Short-Circuit Capacity(240 V AC) 10 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)10 kA
Leakage Current TypeA
Rated Frequency (f)50...60 Hz
Energy Limiting Class3
Number of Protected Poles1
Overvoltage CategoryIII
Earthing Switch TypeUndelayed
Options ProvidedSmissline Classic
Rated Cross-Section1 - Solid-Core 0...35 mm²4 - Multi-Wired 0...35 mm²
Classifications
- ETIM 9
- EC000905 - Earth leakage circuit breaker
- WEEE B2C / B2B
- Business To Business
- eClass
- V11.0 : 27142207
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885362020
Object Classification CodeFB
Environmental
- Ambient Temperature
- –25...60 °C
- Degree of Protection
- IP20
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Environmental Information
- 9AKK108467A9561
Ambient Air TemperatureOperation -25...40 °C
Pollution Degree2
RoHS Information2CCC413008D0206_RoHS
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.03 A
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 248 g
Package Level 1 Unitscarton 2 piece
E-Number (Switzerland)809118832
