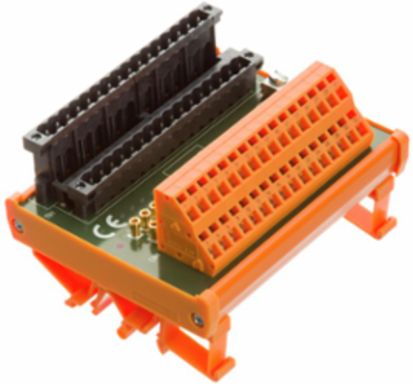

Weidmuller 2000020000 FTA-C300-16AO-TP-Z
- MPN: 2000020000
- PPN: WDM-2000020000
CAD
$294.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-wire, Tension-clamp connection
Specifications
General Data
| LED status display per channel | No |
|---|---|
| Voltage point of measurement | Yes |
| Type of test point | Diameter: 2 mm |
| Fuse per channel | No |
| Power supply fuse | No |
| Disconnection per channel | No |
|---|---|
| Current-measuring testpoint | Yes |
| Switch | No |
| LED status of the supply voltage | No |
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 105 mm |
|---|---|
| Width | 86 mm |
| Height | 66 mm |
| Net weight | 150 g |
| Length (inches) | 4.134 inch |
|---|---|
| Width (inches) | 3.386 inch |
| Height (inches) | 2.598 inch |
Supply Connection
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, max. | 2.5 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible with sleeve, min. | 0.25 mm² |
| Wire cross-section, min. AWG | AWG 14 |
| Stripping length | 7.5 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Ferrule with plastic collar, max. | 1.5 mm² |
| Wire cross-section, max. AWG | AWG 24 |
Insulation Coordination (En50178)
| According to | DIN EN 50178 |
|---|---|
| Surge voltage category | III |
| Pulse voltage test (1,2/50μs) | 0.8 kV |
| Rated insulation voltage | ≤ 50 V DC |
|---|---|
| Pollution severity level | 2 |
| Insulation test voltage | 0.35 kVAC |
Ratings Data
| Operating voltage | 24 V DC ± 10% |
|---|
| Max. current per channel | 1 A |
|---|
Connection Data
| Connection on control side | SLDV-THR 5.08 |
|---|---|
| Connection (field side) | LM2NZF 5.08mm |
| Protective earth connection | M4 round terminal |
| Number of poles (control side) | 32-pole female |
|---|---|
| Wiring system | 1-wire |
Connection Field
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, max. | 2.5 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Flexible, max. H05(07) V-K | 1.5 mm² |
| Flexible with sleeve, min. | 0.25 mm² |
| Min. wire cross-section, AWG | AWG 24 |
| Stripping length | 7.5 mm |
| Clamping range, min. | 0.13 mm² |
|---|---|
| Solid, min. H05(07) V-U | 0.2 mm² |
| Flexible, min. H05(07) V-K | 0.2 mm² |
| Flexible with sleeve, max. | 1.5 mm² |
| Sleeve with plastic collar, max. | 1.5 mm² |
| Max. wire cross-section, AWG | AWG 14 |
Classifications
| ETIM 6.0 | EC002780 |
|---|---|
| eClass 9.0 | 27-14-11-52 |
| eClass 10.0 | 27-14-11-52 |
| ETIM 7.0 | EC002780 |
|---|---|
| eClass 9.1 | 27-14-11-52 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -25...50 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40...60 °C |
