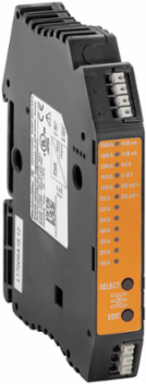

Weidmuller 2593410000 RCMC-5000-AO-P
- MPN: 2593410000
- PPN: WDM-2593410000
CAD
$365.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

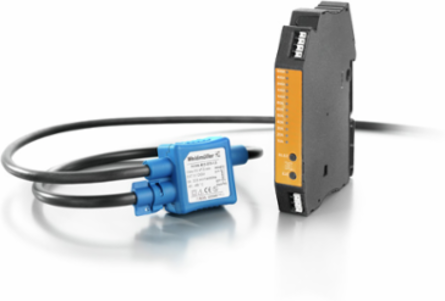

Measuring transducer
Documentation & Downloads
Specifications
General Data
| Accuracy | < 0.5 % of measuring range |
|---|---|
| Current consumption | 200 mA typical |
| Standard | IEC 61010-1: 2010, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, IEC 61010-2-030 |
| Vibration | according to IEC 60721, 3M1 |
| Configuration | Keys and LED display |
|---|---|
| Linearity | ± 0.1 % typ. |
| Temperature coefficient | ≤ 0.015 % / °C |
| Voltage supply | 24 V DC ± 25 % |
Approvals
| ROHS | Conform |
|---|

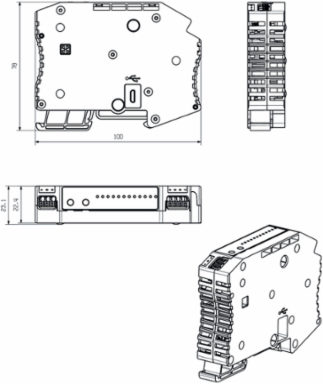

Dimensions And Weights
| Width | 23.1 mm |
|---|---|
| Height | 100 mm |
| Depth | 78 mm |
| Net weight | 58 g |
| Width (inches) | 0.909 inch |
|---|---|
| Height (inches) | 3.937 inch |
| Depth (inches) | 3.071 inch |
Connection Data
| Type of connection | PUSH IN |
|---|
Input

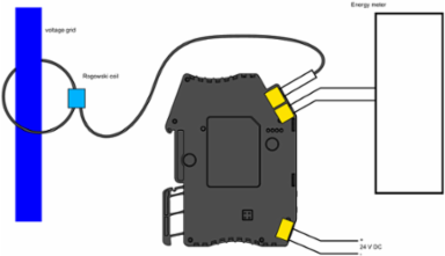

| Input measurement range | 100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A |
|---|
Classifications
| ETIM 6.0 | EC002653 |
|---|---|
| eClass 9.0 | 27-21-01-20 |
| eClass 10.0 | 27-21-01-20 |
| ETIM 7.0 | EC002653 |
|---|---|
| eClass 9.1 | 27-21-01-20 |
Output
| Output voltage, note | 0…5 V DC, 0…10 V DC, 0…225 mV AC, 0…333 mV AC |
|---|---|
| load impedance voltage | ≥ 1 kΩ |
| Output current | 0...20 mA, 4...20 mA |
|---|---|
| load impedance current | ≤ 500 Ω |
Insulation Coordination
| EMC standards | UL 61010-1, EN 61326-1:2013 |
|---|---|
| Pollution severity | 2 |
| Insulation voltage | 1.5 kV AC 1 min. |
|---|---|
| Standard | IEC 61010-1: 2010, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011, IEC 61010-2-030 |
Temperatures
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...70 °C |
