Weidmuller 1845131000 SAIL-VSA-10V(0.5)

  • MPN: 1845131000
  • PPN: WDM-1845131000

CAD

$27.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

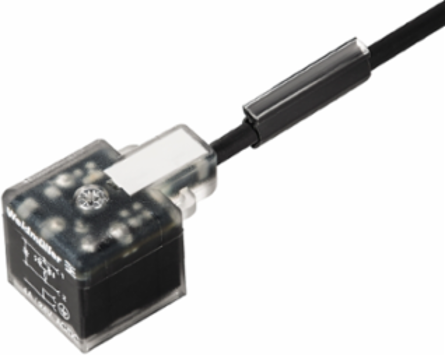

Valve plug with integral seal, One end without connector - valve plug, A

Documentation & Downloads

Specifications

Approvals

ApprovalsEAC
ROHSConform

Dimensions And Weights

Net weight419 g

General Technical Data

VersionOne end without connector - valve plug

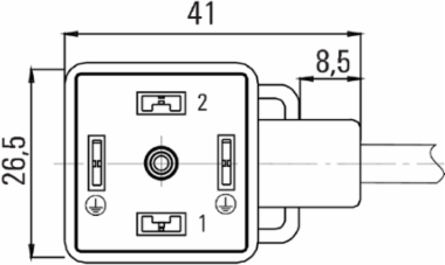

CodingDesign A (18 mm)
Contact surfacetinned
Rated voltage24 V
Temperature range of housing-25…+80 °C
Connection threadMiscellaneous
Protection degreeIP67, when screwed in
LEDYes
Rated current4 A

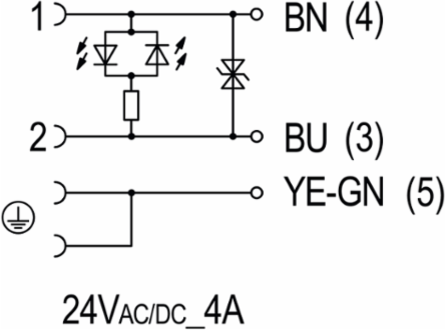

All valve plugs are fitted with protective circuitsSuppressor diode

Technical Specifications For Cable

Number of poles3
Cable length10 m
Sheath materialPVC
HalogenNo
Temperature range, stationary-50...80 °C
Core cross-section0.5 mm²
ShieldedNo
Sheathing colourblack
Temperature range, moving-25...80 °C
Suitable for cable carriersYes

Classifications

ETIM 6.0EC001855
eClass 9.027-06-03-12
eClass 10.027-06-03-12
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC30-21-18-10

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature range, max.80 °C
Operating temperature, max.80 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
SAIL-VSA-10V(0.5)
SAIL-VSA-10V(0.5)
SAIL-VSA-10V(0.5)
SAIL-VSA-10V(0.5)
