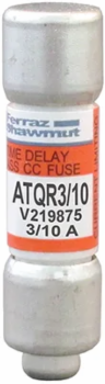

Mersen ATQR3/10 Amp-Trap 2000® Class CC Fuse 600V 0.3A Time-Delay for Inductive Loads
- MPN: ATQR3/10
- UPC: 782001906313
- PPN: FER-ATQR3/10
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Featuring standard 13/32" x 1-1/2" dimensions with a rejection-style tip, this miniature fuse ensures precise compatibility with Class CC fuse blocks while physically preventing the dangerous installation of lower-rated midget fuses. This compact, space-saving footprint maximizes valuable DIN-rail real estate in industrial enclosures, guaranteeing your power distribution setup remains perfectly code-compliant and safely rated for demanding 600V applications.
- Engineered specifically for highly inductive loads, this ATQR series fuse effortlessly absorbs the brief, heavy inrush currents generated when booting up control transformers, contactors, and solenoids. By safely enduring these temporary, harmless surges without nuisance blowing, it eliminates frustrating machine downtime and drastically reduces unnecessary replacement costs in fast-paced manufacturing environments.
- Calibrated for exactly 0.3 Amps (3/10A) at a robust 600V AC, this highly specialized current-limiting fuse provides razor-sharp overcurrent defense for delicate relay boards and specialized automation sensors. It reacts rapidly to sustained overloads, preventing costly thermal damage to sensitive programmable logic controllers (PLCs) and actively minimizing the risk of electrical fires in your low-current circuitry.
- Delivering a massive 200,000 Amp Short Circuit Current Rating (SCCR), this robust fuse safely and reliably interrupts catastrophic high-fault currents before they can destroy expensive switchgear or endanger facility personnel. Fully UL Listed (Standard 248-4) and CSA Certified, relying on this industrial-grade component ensures your automation equipment meets strict safety regulations and easily passes local electrical inspections.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Type
- Time Delay
- Weight
- 0.017 lb
- Mounting
- Clip
- Connection Terminal Material
- Tin-Plated Copper
- ROHS Compliant
- Yes
Amperage0.3 A
Fuse ClassClass CC
Length1.5 in
Frequency50/60 Hz
Connection Terminal TypeFerrule
Body MaterialGMG
