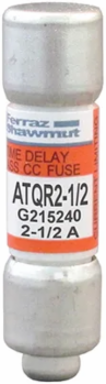

Mersen ATQR2-1/2 Fuse Amp-Trap 2000® 600V 2.5A Time-Delay Class CC, 1.5 Inch Length
- MPN: ATQR2-1/2
- UPC: 782001906511
- PPN: FER-ATQR2-1/2
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Engineered with highly specialized time-delay characteristics, this 2.5-Amp fuse seamlessly withstands intense momentary inrush currents from control transformers, solenoids, and inductive loads. It prevents irritating, costly nuisance openings at machine startup while maintaining tight overcurrent protection during sustained overload conditions.
- Featuring a standardized Class CC rejection-style ferrule tip, the ATQR2-1/2 fits exclusively into matching Class CC fuse holders and disconnect switches. This deliberate physical constraint prevents field technicians or maintenance staff from mistakenly substituting a lower-rated or non-rejection midget fuse, keeping your electrical panel layout safely code-compliant.
- Boasting an exceptional 200,000 AIC rating at 600V AC, this current-limiting fuse safely clears massive short-circuit currents before they can damage downstream controls. By rapidly lowering peak let-through current during catastrophic faults, it protects vulnerable PLCs, contactors, and relays from terminal destructive damage.
- Packed with premium-grade silica filler surrounding its dual-element core, the cartridge provides rapid arc quenching and structural containment during high-energy faults. This architecture ensures high current limitation and thermal stabilization within its compact 13/32 in times 1-1/2 in dimension, avoiding physical chassis shattering.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Class
- Class CC
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Frequency
- 50/60 Hz
Amperage2.5 A
Fuse TypeTime Delay
Length1.5 in
Connection/Terminal TypeFerrule
MountingClip
Weight0.017 lb
