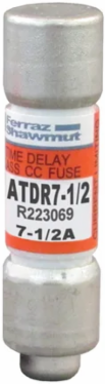

Mersen ATDR7-1/2 Fuse Amp-Trap 2000® 600V 7.5A Class CC Time-Delay, 1.5 Inch Length
- MPN: ATDR7-1/2
- UPC: 782001908591
- PPN: FER-ATDR7-1/2
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- Engineered with advanced dual-element time-delay characteristics, this 7.5 Amp fuse provides reliable protection for highly sensitive small motor and transformer loads without causing nuisance tripping. It safely absorbs temporary, high-magnitude inrush currents during equipment startup while remaining vigilant against sustained overloads.
- This small-dimension cylindrical fuse features industry-standard midget dimensions of 13/32-inch diameter by 1-1/2-inch length (10.4 mm x 38.1 mm) with a standard ferrule terminal connection. It fits perfectly into space-constrained control panels, standard clip mount blocks, or UltraSafe Class CC fuse holders.
- This is a designated UL Class CC rejection-style fuse featuring a specialized physical rejection tip. This safety design ensures it can only be loaded into matching Class CC holders, effectively preventing maintenance personnel from mistakenly installing lower-rated general purpose midget fuses into critical branch circuits.
- Built for ultimate industrial reliability, this current-limiting fuse boasts an exceptionally high interrupting rating of 200 kA AC at 600 Volts and 100 kA DC at 300 Volts. It delivers stringent IEC Type 2 "No Damage" protection, instantly quenching arcs with its high-grade silica filler to shield downstream control components from catastrophic fault currents.
- Constructed with a premium fiberglass body (GMG material), this fuse delivers superior dimensional stability and structural integrity under high-heat, high-moisture, and high-vibration industrial applications. The vibrant orange SmartSpot label guarantees long-term visibility for quick visual identification, and the metal-embossed part number ensures permanent traceability even in dusty or severe environments.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating AC
- 200 kA
- Fuse Type
- Time-Delay, Class CC
- Length
- 1.5 in
- Mounting Type
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Standards
- UL 248-4, CSA C22.2 No. 248.4
Amperage7.5 A
Interrupting Rating DC100 kA
Speed/CharacteristicTime Delay
Weight0.017 lb
Connection/Terminal TypeFerrule
MaterialGMG (Body/Insulating Material)
Frequency50/60 Hz
