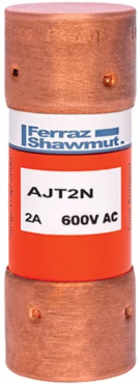

Mersen AJT2N Fuse Amp-Trap 2000 600VAC 2A Time-Delay Class J, 2.25 Inch Length, 0.81 Inch Diameter
- MPN: AJT2N
- UPC: 782001498016
- PPN: FER-AJT2N
CAD
$15.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- Engineered with advanced time-delay characteristics, this 2-amp fuse safely absorbs harmless temporary power surges and heavy inrush currents without experiencing frustrating nuisance tripping. This highly reliable functionality ensures your heavy-duty industrial machinery starts smoothly, eliminating unnecessary facility downtime while still delivering absolute protection against sustained, destructive overloads.
- By restricting peak let-through currents with extreme speed, this highly current-limiting device delivers certified IEC Type 2 protection to your critical motor starters and branch-circuit contactors. This guarantees that your expensive electrical switchgear survives catastrophic short circuits completely undamaged, drastically reducing component replacement costs and complex repair labor.
- Rated for a massive 200,000 Amp short circuit current rating (SCCR) at 600V AC, this robust industrial fuse safely interrupts dangerous, high-magnitude electrical faults before they escalate into facility-wide hazards. By quickly extinguishing electrical arcs within its high-grade silica filler, it significantly reduces arc flash energy and ensures your commercial installation maintains strict compliance with NEC workplace safety standards.
- AJT2N
Documentation & Downloads
Specifications
Additional
| Voltage | 600 V AC / 400 V DC |
|---|---|
| Interrupting Rating | 200 kA AC, 100 kA DC |
| Fuse Class | Class J |
| AC or DC | AC/DC |
| Diameter | 0.81 in |
| Mounting | Clip |
| Connection/Terminal Material | Tin-Plated Copper |
| Compliance | UL Listed, CSA Certified, IEC 60269-2-1, RoHS Compliant |
| Amperage | 2 A |
|---|---|
| Time Delay | Yes |
| Frequency | 50/60 Hz |
| Length | 2.25 in |
| Weight | 0.097 lb |
| Body/Insulating Material | GMG (Fiberglass body, high-grade silica filler) |
| Connection/Terminal Type | Ferrule |
