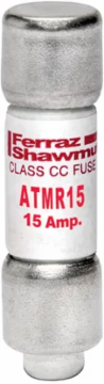

Mersen ATMR15 Fuse 600V 15A Fast-Acting Class CC, Diameter 0.41 Inch, Length 1.5 Inch
- MPN: ATMR15
- UPC: 782001904814
- PPN: FER-ATMR15
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Engineered with Amp-Trap® fast-acting technology, this Class CC fuse delivers highly current-limiting performance to instantly clear short circuits and destructive overloads. This rapid response time actively prevents catastrophic thermal damage to expensive control transformers, relays, and delicate PLC panel wiring, keeping your facility's automated machinery running smoothly.
- Safely rated for 15 Amps across both 600V AC and 600V DC circuits, this versatile fuse provides uncompromising overcurrent defense for a wide range of commercial power demands. It offers facility electricians a reliable, standardized solution for protecting branch circuits, industrial lighting feeds, and heavy-duty motor control centers without the need to stock multiple specialized fuse types.
- Boasting a massive 200,000 Amp short circuit current rating (SCCR) for AC currents, this rugged miniature fuse safely restricts massive fault energy before it destroys downstream equipment. By aggressively containing these high-fault electrical events, it actively protects maintenance personnel from dangerous arc flash hazards and dramatically reduces the downtime associated with replacing blown switchgear.
- Measuring a standard 13/32" x 1-1/2" (10x38mm) with a specialized rejection tip, this fuse is specifically designed to lock exclusively into Class CC fuse blocks and disconnects. This foolproof mechanical footprint completely eliminates the dangerous risk of a technician accidentally installing a lower-rated, non-current-limiting midget fuse, ensuring your installation permanently maintains its rigorous safety rating and strict NEC code compliance.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Fast-Acting
- Length
- 1.5 in
- Connection Type
- Ferrule
- Mounting
- Clip
- Weight
- 0.017 lb
Amperage15 A
Fuse ClassClass CC
Frequency50/60 Hz
Diameter0.41 in
Connection MaterialTin-Plated Copper
MaterialGMG Body/Insulating
ComplianceUL Listed, CSA Certified, RoHS Compliant
