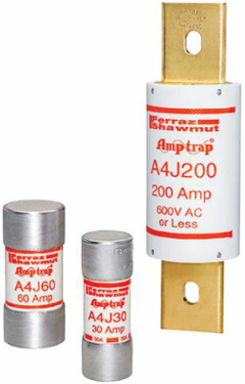

Mersen A4J50 Fuse Amp-Trap 600V 50A Fast-Acting Class J, 1.06 Inch Diameter, 2.38 Inch Length
- MPN: A4J50
- UPC: 782001960247
- PPN: FER-A4J50
CAD
$15.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class J
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- PolyTube
- Weight
- 0.17 lb
Rated voltage DC UL300 V
Ampere Rating50 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeFerrule
Length2.38 in
