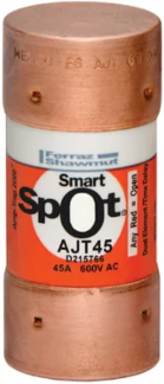

Mersen AJT45 Amp-Trap 2000® 600V 45A Time-Delay Class J Fuse with SmartSpot Indicator
- MPN: AJT45
- UPC: 782001962340
- PPN: FER-AJT45
CAD
$24.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- The Mersen AJT45 is a 45-Amp, 600V AC Class J time-delay fuse. It is a high-performance, current-limiting fuse designed to provide overcurrent protection for motors, feeders, and branch circuits. It is specifically engineered to handle the high inrush currents of industrial motors without "nuisance tripping."
- The AJT45 features a deliberate time-delay (minimum 10 seconds at 500% of the rated current). This allows the fuse to "ride through" the temporary high-current surge that occurs when a motor starts up, while still providing lightning-fast protection against dangerous short circuits.
- Class J fuses are physically smaller than standard Class R or Class H fuses of the same rating. This allows for more compact fuse blocks and disconnect switches, saving valuable space in industrial control panels. The AJT45 measures approximately 1-1/8" in diameter and 2-3/8" in length.
- As an Amp-Trap 2000® series fuse, the AJT45 is highly current-limiting. In the event of a severe short circuit, it reacts so quickly that it limits the "let-thru" energy to a fraction of the available fault current. This significantly reduces the risk of arc flash and prevents catastrophic damage to downstream components like contactors and overload relays.
- The AJT45 has a massive interrupting capacity (I.R.) of 200,000 Amps (200kA) at 600V AC. It is also DC-rated at 500V DC (100kA I.R.). This high rating makes it suitable for use in almost any industrial electrical system, regardless of the available fault current from the utility.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 400 V DC
- Speed/Characteristic
- Time Delay
- Interrupting Rating
- 200 kA AC
- Length
- 2.38 in
- Connection/Terminal Type
- Ferrule
- Arc Quenching Material
- High-grade silica filler
- Frequency
- 50/60 Hz
- Weight
- 0.167 lb
Amperage45 A
Fuse ClassClass J
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG (Fiberglass)
Indication SystemSmartSpot visual open fuse indicator
AC or DCAC/DC
ComplianceUL Listed (Standard 248-8), CSA Certified (C22.2 No. 248.8), IEC 60269-2-1, RoHS Compliant
