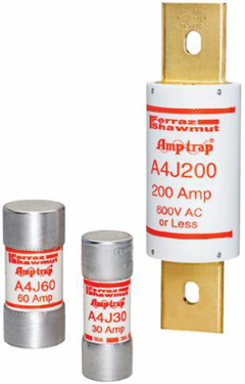

Mersen A4J60 Fuse Amp-Trap 600V 60A Fast-Acting Class J, 2.44 Inch Length, 1.06 Inch Diameter
- MPN: A4J60
- UPC: 782001960261
- PPN: FER-A4J60
CAD
$15.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Fuse Class | Class J |
| Mounting | Clip |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | PolyTube |
| Weight | 0.17 lb |
| Rated voltage DC UL | 300 V |
|---|---|
| Ampere Rating | 60 A |
| AC or DC | AC/DC |
| Speed/Characteristic | Fast-Acting |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Type | Ferrule |
| Length | 2.38 in |
