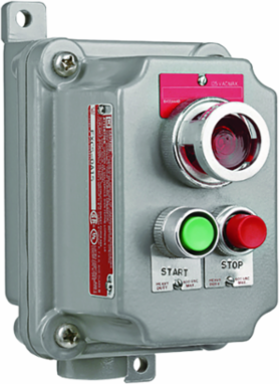

Killark FXCS-2A15 Momentary Contact Control Station - 2 Mini Push Buttons, Red Pilot Light, 3/4 Inch Hub
Killark FXCS-2A15 Momentary Contact Control Station - 2 Mini Push Buttons, Red Pilot Light, 3/4 Inch Hub
- MPN: FXCS-2A15
- UPC: 783936201122
- PPN: HBL-FXCS-2A15
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1425.88/ EA
Description
FXCS Momentary Contact, 2 Mini Push Button- 1 Pilot Light- Red Lens- Cover and Dead-End Box, 3/4" Hub
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- United States
- Depth
- 5.38
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Action
- Momentary
- Amperage Rating
- 10 A
- Color
- Green-Red P.B., Red Light
- Size
- 6.63 in x 6 in x 4.38 in
- Type
- Factory Sealed
- Frequency Rating
- 50/60 Hz
- Number Of Poles
- 2
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714, LR11712
- Gross Weight with Packaging
- 4.4
- UL File Number
- E53360, E12379
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Back Box TypeFXB
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
Length6.63 in
ActuatorPilot Light & Double Pushbutton
ApplicationSEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Number of Poles2
Special FeaturesKillark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Width6 in
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceBOX CVR 2PB 1PL 3/4" DEAD RL
Harmonization Code8536509035
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Factory SealedFactory Sealed
Hub PatternDead-End
SeriesFXCS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936201122
Certifications
- EU RoHS Indicator
- Contact Manufacturer
