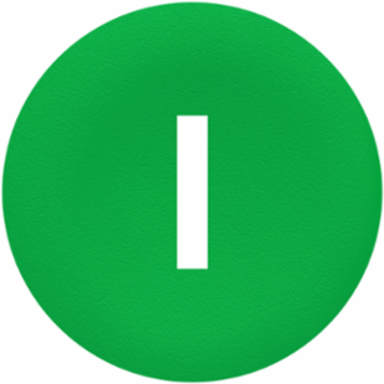

Schneider Electric ZBA331 Green Marked Push Button Cap 22 mm, Flush Design with White I Symbol
- MPN: ZBA331
- PPN: SCH-ZBA331
CAD
$3.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, flush green marked push button cap has a round shape with "I" symbol. This push button cap provides an ergonomic interface for controlling your machine thanks to its flush element. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Marking 1 Marking
- I
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0025419444
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0079081437
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Marking
- white I
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- User Language
- International
- X C Menu
- push-button
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This push button cap provides an ergonomic interface for controlling your machine. It is supplied ready engraved with a marking relevant to machine operation. It is easily installed and replaced on compatible complete push-button units. It has clear and resilient symbol marking on the cap.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Category
- marking accessory
- Accessory / Separate Part Type
- marked push-button cap
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538906000
Carbon Footprint Of The Distribution Phase [A4]0.000130765, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.000045953, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Main Grouppush-button
Operator Profileflush
Quantity Per Setset of 1
Sale Per Indivisible Quantity10
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Cap Operator Or Lens Colorgreen
Pep CodeENVPEP2312047EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Destinationpush-button head
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)0.900 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0106268061
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2312047EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2312047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
ETIM
- ETIM 8
- EC001072
ETIM 9EC001072
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
