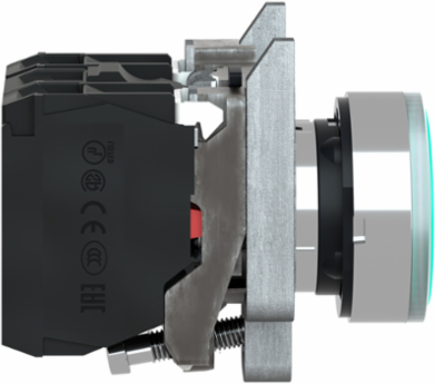

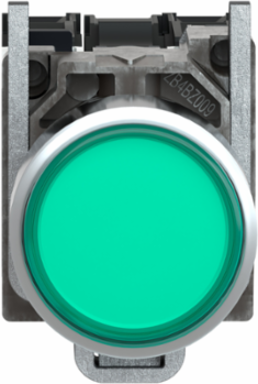

Schneider Electric XB4BW3365 Harmony XB4 Illuminated Push Button, 22mm Flush Green, IP66/IP67/IP69K
- MPN: XB4BW3365
- PPN: SCH-XB4BW3365
CAD
$84.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

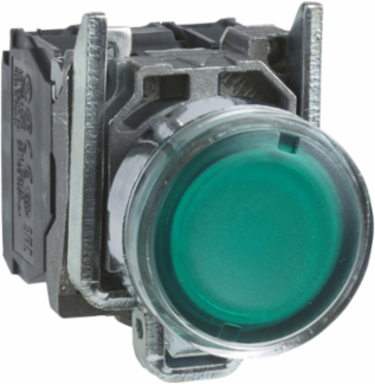

This Harmony XB4 plain lens illuminated modular green push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, Mexico, United States
Depth57 mm
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Cap Operator Or Lens Color
- green
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Terminals Description Iso N°1

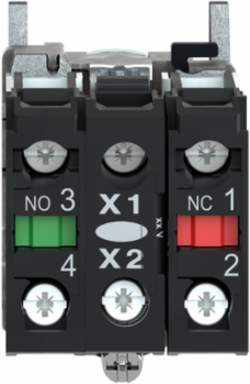

- (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.1616004873
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.730024269
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 17 %
- Bezel Material
- chromium plated metal
- Compatibility Code
- XB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Head Type
- standard
- Light Source
- bulb not included

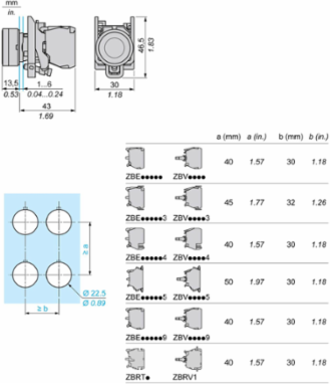

- Mounting Diameter
- 22.5 mm
- Operator Additional Information
- with plain lens
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- illuminated push-button
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 47 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Force3.5 N NC changing electrical state, 3.8 N
Supply Voltage<= 250 V
Certificate AgencyCSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
[Us] Rated Supply Voltage<= 250 V, <= 250 V, <= 250 V, <= 250 V
Carbon Footprint Of The Distribution Phase [A4]0.0155162183, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0142607018, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]71 kg CO2 eq., 70.9124843415
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content28 %
Bulb BaseBA 9s
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Device Short NameXB4
Fixing Collar Materialzamak
Light Block Supplydirect <2.4 W
Mechanical Durability10000000 cycles
Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Operator Profilegreen flush
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Signalling Typesteady
Sustainable PackagingYes
Total Lifecycle Carbon Footprint72 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1808008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %75
Width Nominal30 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourgreen
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)96.0 g
Take-backNo
Customs Code8536509033
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 71.8338860179
- Environmental Disclosure
- ENVPEP1808008EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level17 %
Mercury FreeYes
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1808008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
