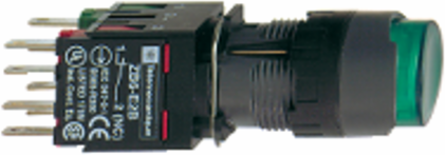

Complete illuminated push button, Harmony XB6, green projecting, 16mm, spring return, 1NO + 1NC, 12...24V
Schneider Electric

Schneider Electric XB6AE3B5B Complete illuminated push button, Harmony XB6, green projecting, 16mm, spring return, 1NO + 1NC, 12...24V

  • MPN: XB6AE3B5B
  • PPN: SCH-XB6AE3B5B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $51.26

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Complete illuminated push button, Harmony XB6, green projecting, 16mm, spring return, 1NO + 1NC, 12...24V

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico

    Physical Attributes

    Cad Overall Depth
    61 mm
    Cad Overall Width
    18 mm
    Cad Overall Height18 mm

    Important Information Attributes

    Electrical Durability
    1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Certificate Agency
    CCC, GOST, UL, CSA
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Bezel Material
    plastic
    Compatibility Code
    XB6
    Contacts Material
    silver alloy (Ag/Ni)
    Current Consumption
    15 mA
    Electrical Reliability
    λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    Electromagnetic Emission
    class B IEC 55011
    Mounting Diameter
    16 mm
    Operating Position
    any position
    Operator Profile
    green projecting, unmarked
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TC
    Resistance To Electromagnetic Fields
    10 V/m IEC 61000-4-3
    Resistance To Fast Transients
    2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity
    1
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Supply Voltage Limits
    6-30 V AC/DC
    Type Of Operator
    spring return
    [Ie] Rated Operational Current
    3 A 120 V, AC-15, B300 IEC 60947-5-11.5 A 240 V, AC-15, B300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
    Connections - Terminals
    Faston connectors 2.8 x 0.5 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509031
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Terminals Description Iso N°1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Bulb Baseintegral LED
    Contact Operationslow-break
    Contacts Type And Composition1 NO + 1 NC
    Device Short NameXB6
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Light SourceLED
    Operating Force3.5 N NO changing electrical state4.5 N NC changing electrical state
    Operating Travel1 mm NO changing electrical state)2 mm NC changing electrical state)3.5 mm total travel)
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Or Component Typecomplete illuminated push-button
    Range Of ProductHarmony XB6
    Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Signalling Typesteady
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    [Us] Rated Supply Voltage12...24 V AC/DC
    Short-circuit Protection6 A cartridge fuse gG
    Package Weight(Lbs)23.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP65 IEC 60529
    Packaging Without Single Use Plastic
    No
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes

    General Attributes

    Product Or Component Type
    complete illuminated push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
