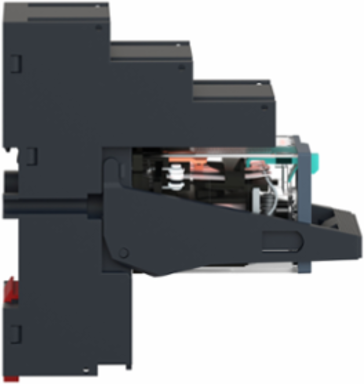

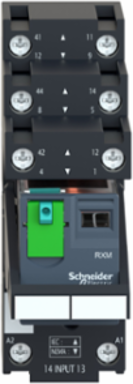

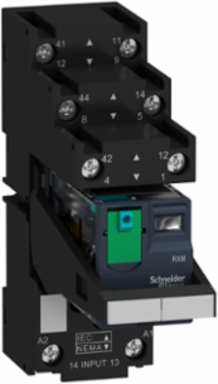

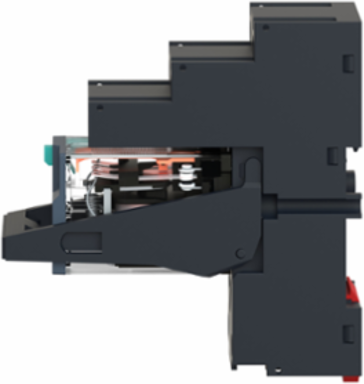

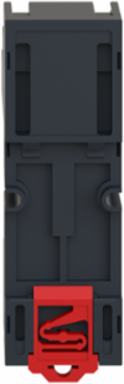

Schneider Electric RXM2AB2BDPVS Harmony Miniature Electromechanical Relay 12A 2CO 24V DC with LED






Schneider Electric RXM2AB2BDPVS Harmony Miniature Electromechanical Relay 12A 2CO 24V DC with LED
- MPN: RXM2AB2BDPVS
- PPN: SCH-RXM2AB2BDPVS
Spec sheet
Loading compare button...
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$40.71/ EA
Description
Specifications
Environment
- Product Certifications
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Pollution Degree
- 2
- Dielectric Strength
- 1300 V AC between contacts micro disconnection || 2000 V AC between coil and contact basic insulation || 2000 V AC between poles basic insulation
- Shock Resistance
- 10 gnin operation || 30 gnnot operating
- Ambient Air Temperature For Storage
- -40-85 °C
Contractual warranty
- Warranty
- 18 Months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Switching Capacity
- 3000 VA AC || 336 W DC
- Continuous Output Current
- 10 A
- Torque Value
- 1 N.m
- Test Levels
- level A group mounting
- Reset Time
- 20 ms
- Cad Overall Height
- 82.8 mm
- Average Resistance
- 650 Ohm 20 °C +/- 10 %
- Connections - Terminals
- connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
- Rated Operational Voltage Limits
- 19.2...26.4 V DC
- Sale Per Indivisible Quantity
- 30
- Minimum Switching Current
- 10 mA
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Drop-Out Voltage Threshold
- >= 0.1 Uc DC
- Cad Overall Width
- 26.9 mm
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- with
- Series Name
- Miniature
- Device Short Name
- RXM
