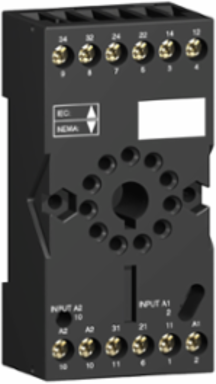

Schneider Electric RUZSC2M Harmony Socket Relay for RUMC2, 12A, 250V AC, DIN Rail Mount, IP20
- MPN: RUZSC2M
- PPN: SCH-RUZSC2M
CAD
$13.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, United States |
|---|
Complementary Attributes
| Line Rated Current | 12 A |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Tightening Torque | < 1 N.m M3.5, < 1 N.m M3.5< 1 N.m M3.5, < 1 N.m M3.5 |
| Connections - Terminals | screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Terminal Arrangement | separate |
| Device Short Name | RUZ |
| Group Of Product | RUM_2_C/O_CON_SEP_CYL |
| Overvoltage Category | III |
| Product Or Component Type | socket |
| Returnability | Yes |
| Shape Of Pin | cylindrical |
| Pep Code | ENVPEP1511021EN |
| [Ith] Conventional Free Air Thermal Current | 12 A |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV |
| Package Weight(Lbs) | 68.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | RUZ |
| Contacts Type And Composition | 2 C/O |
| Fixing Mode | by screw (panel)clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Electromechanical Relays |
| Sale Per Indivisible Quantity | 10 |
| Sustainable Packaging | Yes |
| Width Nominal | 36 mm |
| [Ue] Rated Operational Voltage | < 250 V< 250 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-55 °C, -40-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP1511021EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1511021EN |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | plug-in relay RUM 2 C/O |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | socket |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001456 |
|---|
| ETIM 9 | EC001456 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
