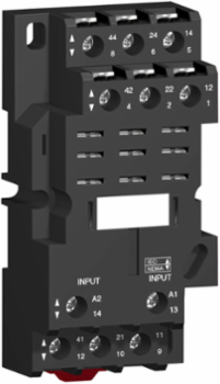

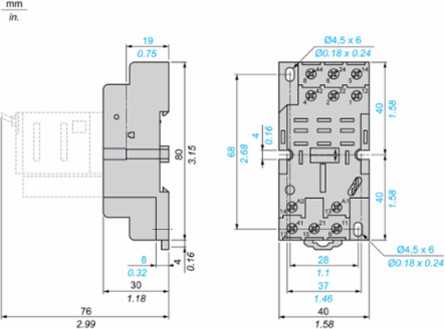

Schneider Electric RPZF3 Harmony Electromechanical Relay Socket, 16A, IP20, Mixed Contact

MPN: RPZF3
PPN: SCH-RPZF3

$21.66

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Singapore, Taiwan, United States

Complementary Attributes

Line Rated Current	16 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Tightening Torque	< 1 N.m M3.5, < 1 N.m M3.5< 1 N.m M3.5, < 1 N.m M3.5
Connections - Terminals	- , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - , solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG, - , solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWGscrew clamp terminals, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, flexible with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, solid without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG, - screw clamp terminals, flexible with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG, - screw clamp terminals, solid without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0073793634
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.7 kg CO2 eq., 0.7401683483
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	RPZ
Contacts Type And Composition	3 C/O
Dielectric Strength	2500 V
Group Of Product	RPM_3_C/O_SC_TER_MIX_FLAT
Overvoltage Category	III
Product Or Component Type	socket
Returnability	Yes
Shape Of Pin	flat
Sustainable Packaging	Yes
Pep Code	ENVPEP2506024EN
Pep Verification Date	2020-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; AC; consumption mix, at consumer; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; AC; consumption mix, at consumer; <lt/> 1kV; EU-27
Width Nominal	40 mm
[Ue] Rated Operational Voltage	< 250 V< 250 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536698000

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	CSA, UL
Carbon Footprint Of The Distribution Phase [A4]	0.0099347985, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0005904735, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Terminal Arrangement	mixed
Device Short Name	RPZ
Fixing Mode	by screw (panel)clip-on (35 mm symmetrical DIN rail)
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Electromechanical Relays
Sale Per Indivisible Quantity	10
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	0.8 kg CO2 eq.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RPZF1 is a socket that can be mounted with RPM1 plug in relays and protect persons during 20 years with the following dimensions 80mm x 31mm x 21mm.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity Mix; AC; consumption mix, at consumer; <lt/> 1kV; EU-27
Recyclability Potential In %	37
[Ith] Conventional Free Air Thermal Current	16 A
[Uimp] Rated Impulse Withstand Voltage	4 kV
Package Weight(Lbs)	77.0 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-55 °C, -40-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.7580729837
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	plug-in relay RPM 3 C/O
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2020-11-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506024EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506024EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
