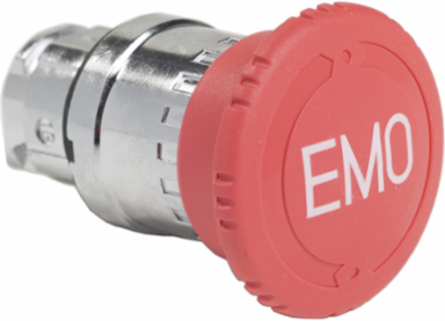

Schneider Electric ZB4BS84430 Emergency stop head, Harmony XB4, switching off, metal, red mushroom 40mm, 22mm, trigger latching turn to release, marked EMO

Emergency stop head, Harmony XB4, switching off, metal, red mushroom 40mm, 22mm, trigger latching turn to release, marked EMO
  • MPN: ZB4BS84430
  • PPN: SCH-ZB4BS84430

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$74.49/ EA

    Description

    This head for emergency stop push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 40 mm, marked EMO (white). It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It operates with with trigger action and mechanical latching. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 73g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications

    Specifications

    Complementary

    Electrical Composition Code
    C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || C10 4 single and double front mounting
    Cad Overall Height
    40 mm
    Cad Overall Width
    40 mm
    Net Weight0.073 kg
    Mechanical Durability300000 cycles
    Cad Overall Depth57 mm

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2201004EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    ENVEOLI2201004EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Specifications

    Reset
    turn to release
    Mounting Diameter
    22.5 mm
    Product Or Component Type
    head for emergency switching off push-button
    Head Type
    standard
    Bezel Material
    chromium plated metal
    Device Short Name
    ZB4
    Range Of ProductHarmony XB4
    Type Of Operatortrigger action and mechanical latching
    Shape Of Signaling Unit Headround
    Sale Per Indivisible Quantity1
    Operator Profilered mushroom Ø 40 mm, EMO

    Environment

    Product Certifications
    DNV || BV || GL || CSA || UL listed || LROS (Lloyds register of shipping)
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP69 || IP69K
    Nema Degree Of Protection
    NEMA 13 || NEMA 4X || NEMA 4 || NEMA 12
    Protective Treatment
    TH
    Ik Degree Of ProtectionIK06 conforming to IEC 50102
    StandardsJIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || GB 14048.5 || UL 508 || IEC 60947-1 || IEC 60364-5-53 || IEC 60947-5-4 || IEC 60204-1 || IEC 60947-5-5 || ISO 13850 || JIS C8201-1
    Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Electrical Shock Protection Classclass I IEC 61140
