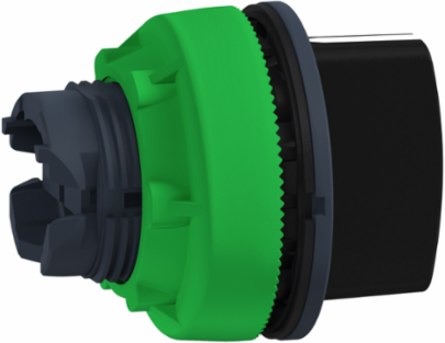

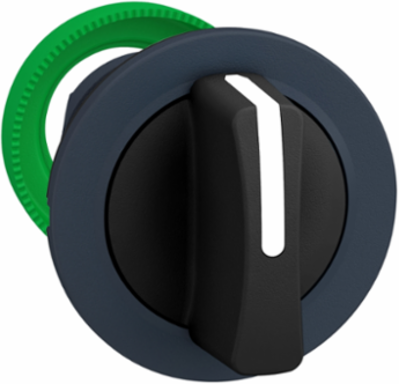

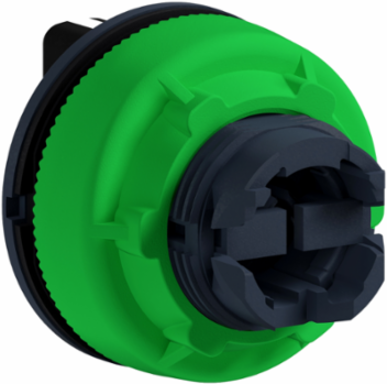

Schneider Electric ZB5FD5 Head for selector switch, Harmony XB5, flush mounted selector switch head, plastic, black, 30mm, 3 positions, spring return to center
Schneider Electric ZB5FD5 Head for selector switch, Harmony XB5, flush mounted selector switch head, plastic, black, 30mm, 3 positions, spring return to center
- MPN: ZB5FD5
- PPN: SCH-ZB5FD5
- UNSPSC: 39122221
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$56.78/ EA
Description
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- Multiple conncection type available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- Large set of accessories to customize your panels
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- black
- Cad Overall Height
- 37 mm
Cad Overall Depth46 mm
Cad Overall Width37 mm
Conformance Attributes
- Product Certifications
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
StandardsIEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, JIS C8201-1, ISO 21702, ISO 22196:2011
Important Information Attributes
- Bezel Material
- dark grey plastic, plastic colour plated grey
- Customizable
- 1, no
- Mounting Diameter
- 30.5 mm
- Product Or Component Type
- head for selector switch
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Carbon Footprint Of The Distribution Phase A4
- 0.003661426, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0095349703, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Average Percentage Of Recycled Plastic Content
- 28 %
- Device Short Name
- ZB5
- Group Of Product
- non illuminated
- Main Group
- selector switch
- Operator Position Information
- 3 positions +/- 45°
- Package Weight Lbs
- 28 g
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sustainable Packaging
- Yes
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Medium Desc
- Head for selector switch, Harmony XB5, flush mounted selector switch head, plastic, black, 30mm, 3 positions, spring return to center
- Product Kit Identifier
- N
- Type Of Operator 3 Return
- to cen
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Global Commercial Status
- Commercialised
Cap Operator Or Lens Colorblack
Electrical Composition CodeC3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, SF1 3 single front mounting
Operator Profileblack standard handle
Shape Of Signaling Unit Headround
Type Of Operatorto centre spring return
Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.049186493
Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.1906676349
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content60 %
Compatibility CodeZB5
GCR BridgeZB5FDCUST01
Head Typebuilt-in-flush
Mechanical Durability1000000 cycles
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XB5
ReturnabilityYes
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Operator Pos Information3 positions +/- 45°
Stocking FlagN
Type Of Operator 3spring return
Pep CodeENVPEP2308008_V1-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69K, IP69
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2530505242
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308008_V1-EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308008EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2308008_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony XB5
Overview Attributes
- Device Presentation
- basic element
