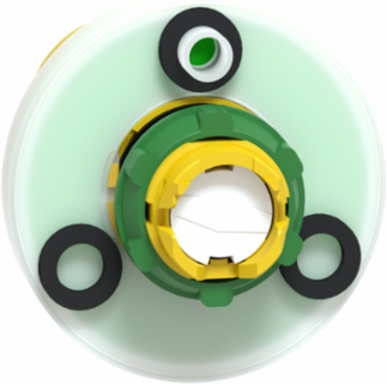

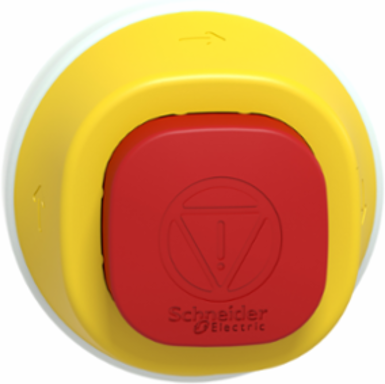

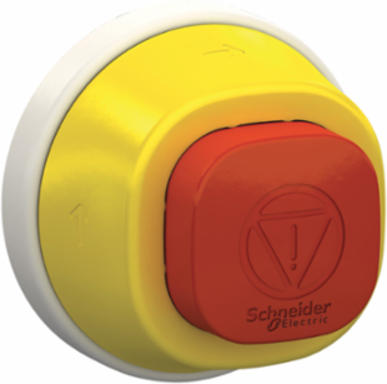

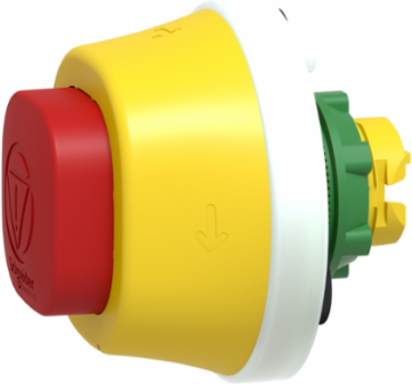

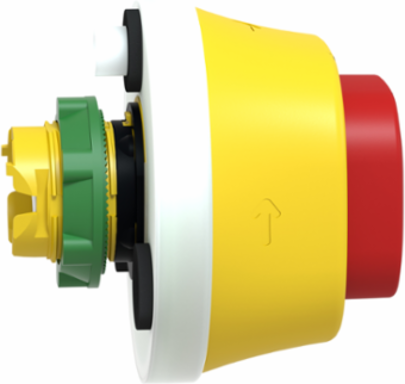

Schneider Electric ZB5AS84W2G Harmony XB5 Antimicrobial Emergency Stop Head, 22mm, Red LED, 110-120V AC
- MPN: ZB5AS84W2G
- PPN: SCH-ZB5AS84W2G
CAD
$111.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Reset
- turn to release
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for illuminated emergency stop push-button
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- red square 32 mm
Range Of ProductHarmony XB5
Type Of Operatortrigger action and mechanical latching
Shape Of Signaling Unit Headround
Device Presentationbasic element
Bezel Materialplastic
Device Short NameZB5
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Net Weight
- 0.063 kg
- Electrical Insulation Class
- class II IEC 61140
- Supply Voltage Limits
- 100-132 V AC
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Compatibility Code
- ZB5
- Cad Overall Width
- 60 mm
- [Us] Rated Supply Voltage
- 110...120 V AC 50...60 Hz
Electrical Composition CodeC7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
Cad Overall Height60 mm
[Ui] Rated Insulation Voltage120 V 3)IEC 60947-1
Light Source Colourred
Mechanical Durability300000 cycles
Product CompatibilityZB5
Cad Overall Depth40 mm
Environment
- Product Certifications
- UL listed || CSA || EAC
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsIEC 60947-5-1 || IEC 60947-5-4 || UL 508 || ISO 21702 || ISO 22196:2011
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
