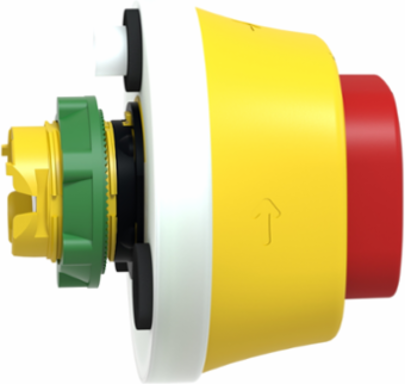

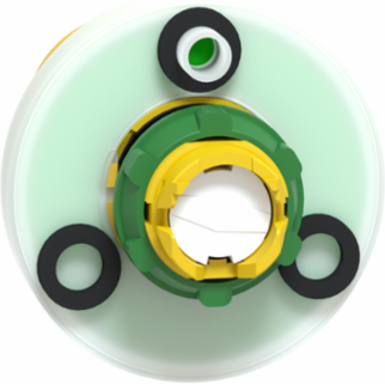

Schneider Electric ZB5AS84W2B Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, red LED, 24V AC DC
Schneider Electric ZB5AS84W2B Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, red LED, 24V AC DC
- MPN: ZB5AS84W2B
- PPN: SCH-ZB5AS84W2B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$83.51/ EA
Description

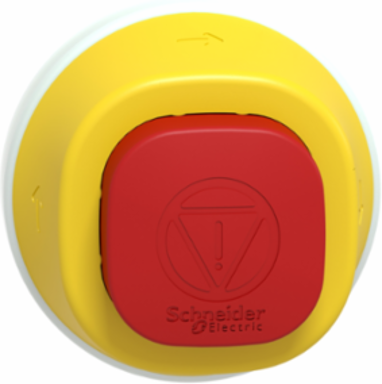

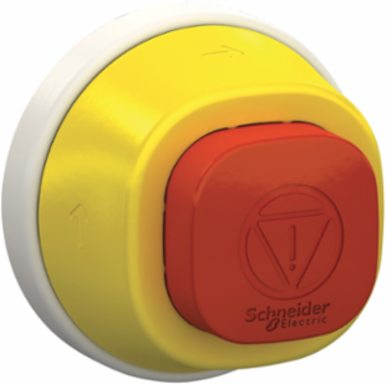

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Specifications
Physical Attributes
- Light Source Color
- red, red
- Cad Overall Height
- 60 mm
- Cap Operator Or Lens Color
- red
Cad Overall Depth40 mm
Cad Overall Width60 mm
Complementary Attributes
- Us Rated Supply Voltage
- 24 V, 24 V AC/DC 50...60 Hz
Ui Rated Insulation Voltage24 V 3)IEC 60947-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Supply Voltage
- 24 V
- Light Source Color
- red, red
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.1382287335
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.6 kg CO2 eq., 0.6337921717
- Certificate Agency
- UL Listed, CSA, EAC
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308012EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 60 %
- Bezel Material
- plastic
- Device Short Name
- ZB5
- Group Of Product
- emergency stop turn to release
- Main Group
- E-stop
- Mechanical Durability
- 300000 cycles
- Operator Profile
- red square 32 mm
- Product Or Component Type
- head for illuminated emergency stop push-button
- Range Of Product
- Harmony XB5
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.8 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Cap Operator Or Lens Color
- red
- Pep Code
- ENVPEP2308013_V1-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime In Y2
- 10
- Offer Owner Code
- 190786
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting, C10 4 single and double front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Supply Voltage Limits19.2-30 V DC, 21.6-26.4 V AC
Carbon Footprint Of The Distribution Phase A40.0108537752, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.020326832, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content7 %
Compatibility CodeZB5
Electrical Insulation Classclass II IEC 61140
Head Typestandard
Markingunmarked

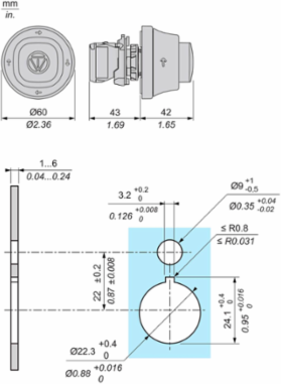

Mounting Diameter22 mm
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resetturn to release
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Type Of Operatortrigger action and mechanical latching
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionEmergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Pn1
Environment Attributes Main
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.8032015123
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308013_V1-EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- ZB5
- Pep Code
- ENVPEP2308013_V1-EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level60 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for illuminated emergency stop push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- China, Czechia, United States
Overview Attributes
- Device Presentation
- basic element
