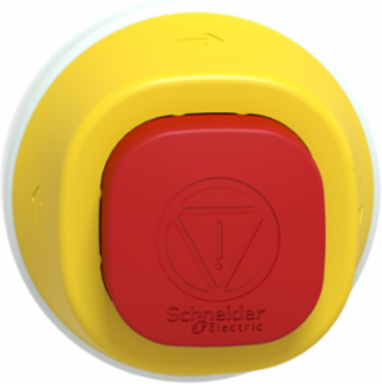

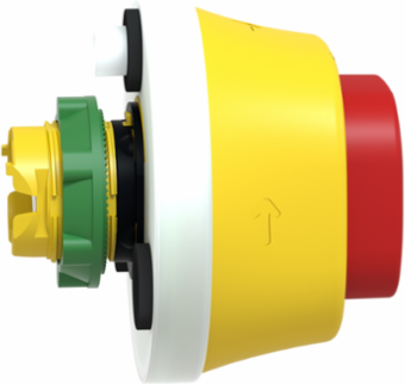

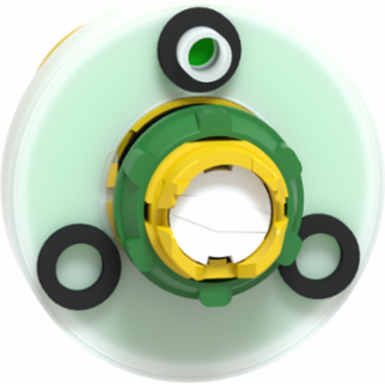

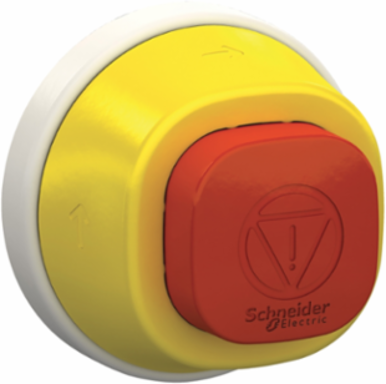

Schneider Electric ZB5AS84W3B Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
Schneider Electric ZB5AS84W3B Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
- MPN: ZB5AS84W3B
- PPN: SCH-ZB5AS84W3B
- UNSPSC: 39121545
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$100.22/ EA
Description
This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Features
- Wide modular range to suit machines and operator safety.
- Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
- Illuminated types to improve operator efficiency by reducing production downtime.
- Ergonomic design for emergency actuation in several environments
- Large set of accessories : circular legends, illuminated legend rings for harsh environments.
- International standards & certifications (IP69K, IP69, IP67, IP66, IK03, Type 13, Type 12, Type 4X, Type 4)
- Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
Specifications
Physical Attributes

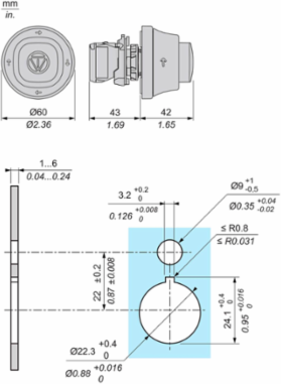

- Cad Overall Depth
- 40 mm
- Cad Overall Width
- 60 mm
- Light Source Color
- white or red
Cad Overall Height60 mm
Cap Operator Or Lens Colorred
Conformance Attributes
- Product Certifications
- UL Listed, CSA, EAC
StandardsIEC 60947-5-1, IEC 60947-5-4, UL 508, ISO 21702, ISO 22196:2011
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2

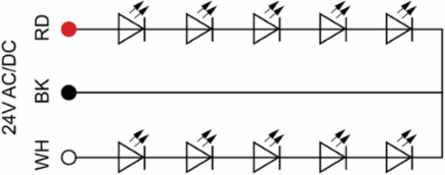

- Supply Voltage Limits
- 19.2-30 V DC, 21.6-26.4 V AC
- Carbon Footprint Of The Distribution Phase A4
- 0.0111153119, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0208166352, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308012EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Percentage Of Recycled Metal Content
- 60 %
- Bezel Material
- plastic
- Compatibility Code
- ZB5
- Electrical Insulation Class
- class II IEC 61140
- Head Type
- standard
- Main Group
- E-stop
- Mechanical Durability
- 300000 cycles
- Operator Profile
- red square 32 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Reset
- turn to release
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Type Of Operator
- trigger action and mechanical latching
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Emergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
- Global Commercial Status
- Commercialised
- Us Rated Supply Voltage5
- 24 V AC/DC 50...60 Hz
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting, C10 4 single and double front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Us Rated Supply Voltage224 V, 24 V AC/DC 50...60 Hz
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.1415595463
Carbon Footprint Of The Manufacturing Phase A1 To A30.6 kg CO2 eq., 0.6490642722
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Average Percentage Of Recycled Plastic Content7 %
Cap Operator Or Lens Colorred
Device Short NameZB5
Group Of Productemergency stop turn to release
Light Source Colorwhite or red
Markingunmarked
Mounting Diameter22 mm
Package Weight Lbs85.0 g
Product Or Component Typehead for illuminated emergency stop push-button
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Headround
Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ui Rated Insulation Voltage224 V 3)IEC 60947-1
Stocking FlagN
Pep CodeENVPEP2308013_V1-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Ui Rated Insulation Voltage524 V 3)IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 0.8225557656
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308013_V1-EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Recycled Metal Content At Cr Level60 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308012EN
Packaging Made With Recycled CardboardYes
Product CompatibilityZB5
Pep CodeENVPEP2308013_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated emergency stop push-button
Range Of ProductHarmony XB5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
