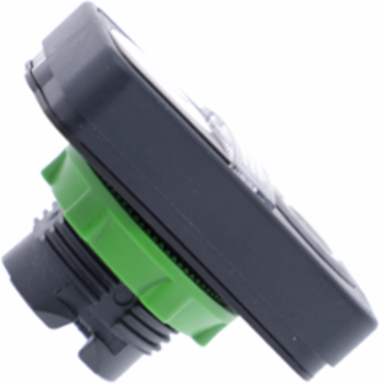

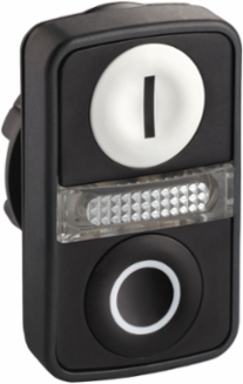

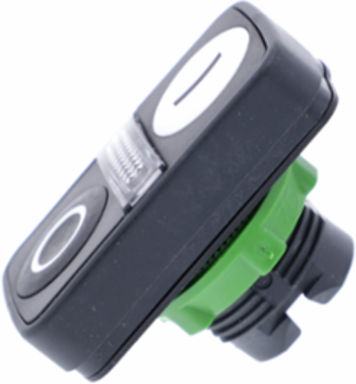

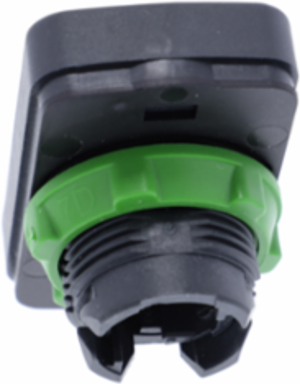

Schneider Electric ZB5AW7A1721 Harmony XB5 Illuminated Double Headed Push Button, 22mm, IP66/IP67/IP69K
- MPN: ZB5AW7A1721
- PPN: SCH-ZB5AW7A1721
CAD
$56.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

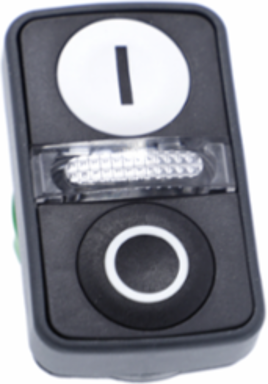

This Harmony XB5, double head has 1 white, 1 black button and 1 central white pilot light, operates with a spring return mechanism, with. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Physical Attributes
- Color Of Marking
- black/white, black marking when white caps

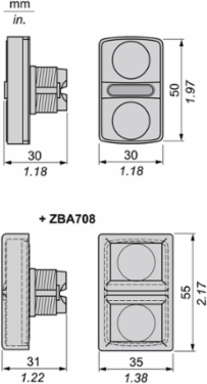

- Cad Overall Height
- 50 mm
Cad Overall Depth30 mm
Cad Overall Width30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Profile
- white flush, I black), black flush, O white), 2 flush push-buttons - 1 central pilot light
- Color Of Marking
- black/white, black marking when white caps
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.05316648841354723
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.1603235294117647
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2404014EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 29 %
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Group Of Product
- flush/flush illum marked
- Main Group
- illum double head
- Mechanical Durability
- 1000000 cycles
- Operators Description
- white ''I'' - black ''O''
- Product Or Component Type
- head for illuminated double-headed push-button
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Operator Profile 1 Marking
- O
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Cap/Operator Or Lens Colour
- white/black
- Package Weight(Lbs)
- 25.200 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeM1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Profile 1 Cap Operator Or Lens Colorblack
Carbon Footprint Of The Distribution Phase [A4]0.0066298217468805706, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0063752228163992865, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content16 %
Compatibility CodeZB5
Electrical Shock Protection Classclass II conforming to IEC 60536
Head Typestandard
MarkingI-O
Mounting Diameter22 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headrectangular
Station NameXALD 1 cut-out
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2404014_V1
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP66, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 29 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2264950623885918
- Environmental Disclosure
- ENVPEP2404014_V1
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- integral LED
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404014_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for illuminated double-headed push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
