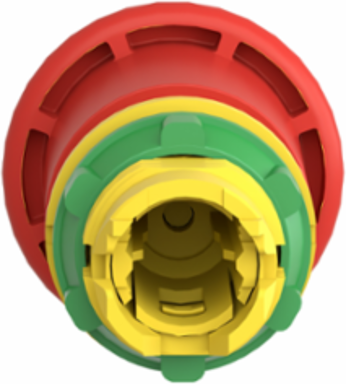

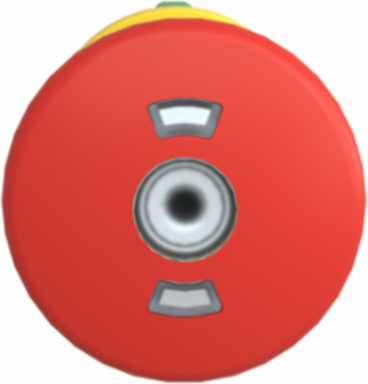

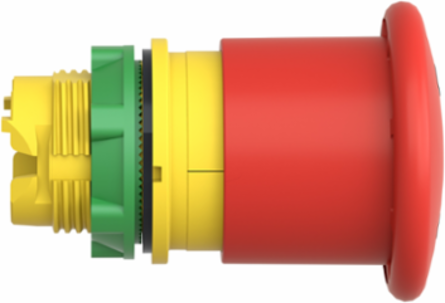

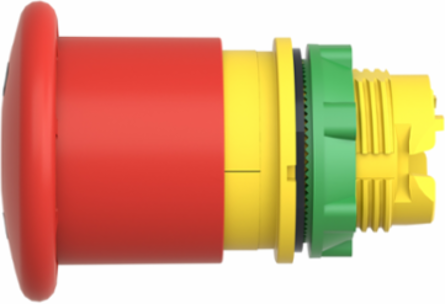

Schneider Electric ZB5AT8643M Harmony XB5 Illuminated Emergency Stop Head, 40mm Mushroom, IP54
- MPN: ZB5AT8643M
- PPN: SCH-ZB5AT8643M
CAD
$148.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

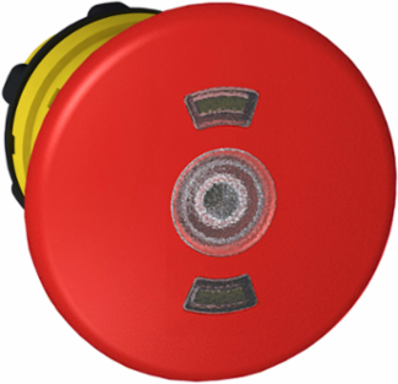

This Harmony XB5 emergency stop / shutdown 40mm mushroom red button head operates with a latched push-pull mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Features
- The Schneider ZB5AT8643M is a 22mm illuminated emergency stop (E-stop) mushroom head from the Harmony XB5 plastic range. It is designed to provide both a physical emergency shutdown mechanism and visual status signaling in a single, high-visibility operator.
- This head features trigger action mechanical latching. This means the internal contacts will not change state until the button is fully depressed to the "trip" point, preventing accidental stops. Once pressed, it locks in place (latches) and requires a intentional push-pull action to reset, ensuring the machine cannot be restarted until the area is cleared.
- A key feature of the ZB5AT8643M is the built-in 360° mechanical indicator. A colored ring (typically red/green) around the base of the mushroom head provides a clear visual confirmation of whether the button is active or reset, even if the illumination power is lost.
- The "mushroom" is made of a translucent red plastic designed to be used with an integral LED block. When combined with a ZB5 light block and a contact block, the head glows, making it much easier for operators to locate the emergency stop in dark environments or during a system fault
- The head features a 40mm diameter "mushroom" shape. This large surface area is designed for ergonomic "slap" activation, allowing an operator to hit the button quickly with their palm or fingers during an emergency without needing precision.
Documentation & Downloads
Specifications
Key Specifications
- Reset
- push-pull
- Mounting Diameter
- 22.5 mm
- Product Or Component Type
- head for illuminated emergency stop push-button
- Head Type
- standard
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- red mushroom Ø 40 mm, unmarked
Range Of ProductHarmony XALF || Harmony XB5
Type Of Operatortrigger action and mechanical latching with mechanical state indicator
Shape Of Signaling Unit Headround
Device Presentationbasic element
Bezel Materialdark grey plastic
Device Short NameZB5
Complementary
- Electrical Composition Code
- M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
- Cad Overall Height
- 40 mm
- Compatibility Code
- ZB5
- Product Compatibility
- integral LED
- Cad Overall Depth
- 59 mm
Net Weight0.034 kg
Mechanical Durability300000 cycles
Station NameXALD 1 cut-out || XALK 1 cut-out
Cad Overall Width40 mm
Environment
- Product Certifications
- CSA || BV || LROS (Lloyds register of shipping) || DNV || GL || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP54 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsGB 14048.5 || UL 508 || ISO 13850 || IEC 60204-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
