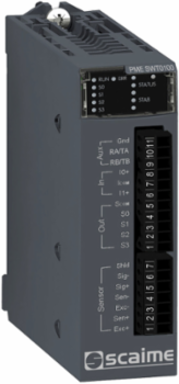

Schneider Electric PMESWT0100 Modicon X80 Weighing Transmitter Module, 1 Channel, 400 mA Output

  • MPN: PMESWT0100
  • PPN: SCH-PMESWT0100
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3694.88

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Modicon X80 Weighing Transmitter Module from Schneider Electric is expertly engineered to provide precise measurement and control in industrial applications. This one-channel module features a robust 400 mA output, ensuring reliable communication with connected systems. Its design caters to demanding environments, offering a seamless integration into existing setups while efficiently handling weighing tasks with accuracy and consistency. Ideal for applications where monitoring weight is critical, this module underscores the commitment to quality and performance that Schneider Electric is known for.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Mexico, United States

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Status Led1 LED (Green) module operating (RUN), 1 LED (Green) digital output status (S1)1 LED (Red) module error (ERR), 1 LED (Red) external fault (I/O), 1 LED (Green) communication (COM)1 LED (Yellow) test mode (TEST), 1 LED (Green) calibration (CAL), 1 LED (Red) converter error (FAULT), 1 LED (Red) memory corruption (MEM ERR), 1 LED (Green) digital output status (S0)
    Local Publishable Date2026-07-27
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Power Consumption In W3.5 W
    Product Or Component Typeweighing transmitter module
    Resolution24 bits internal1000000 points user factory calibrated 500000 at 2 mV/V
    ReturnabilityNo
    Voltage State 0 Guaranteed0...3 V DC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2024
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Market SegmentationIndustrial
    Measuring Rate6...400 measurements per second internal100 measurements per second external
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductModicon X80
    Response Time2 ms
    Sustainable PackagingNo
    Voltage State 1 Guaranteed9...28 V DC
    Package Weight(Lbs)287.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Product CompatibilityBMEXBP... backplane, head module BMECRA31210, BMEP58... processor
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Typeweighing transmitter module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001422
    ETIM 9EC001422

    Output Attributes

    Discrete Output Number4 positive logic (source) total2 for dosing, 2 for threshold monitoring
    Nominal Output Current400 mA
    Discrete Output Voltage<= 55 V DC, <= 55 V DC<= 55 V DC, <= 55 V DC
    Output Typereflex digital output

    Input Attributes

    Discrete Input Current20 mA 24 V
    Input Voltage5 V DC
    Discrete Input Number2 positive logic for weighing functions
    Number Of Measurement Input1
