Tripp Lite B126-1A1-U HDMI Extender Kit, 1080p @60Hz, Extends up to 125 ft, TAA Compliant
- MPN: B126-1A1-U
- UPC: 037332190260
- PPN: TRP-B126-1A1-U
CAD
$390.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

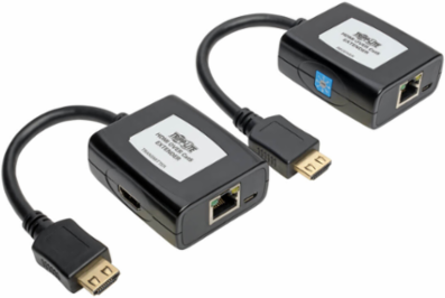

Transmitter and receiver work in tandem to extend an HDMI audio/video signal via Cat5e/6 cable to an HDMI display up to 125 ft. Ideal for digital signs, schools, retail settings and trade show presentations.
Features
- Supports high-definition video resolutions up to 1080p (@ 60 Hz)
- Supports stereo audio and HDCP
- Works with all operating systems and HDMI sources

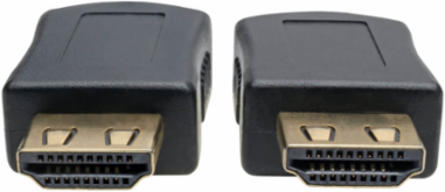

- Built-in cable includes latching HDMI connector for a more secure connection
- Plug and play—no software, drivers or external power supply

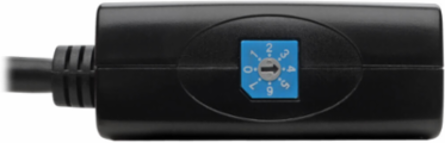

- Built-in equalization control lets you adjust monitor image
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Video Resolution
- 1080p @ 60 Hz
- Audio Support
- Stereo
- Power
- Bus Powered (USB Micro-B to USB-A)
- Transmitter Unit Dimensions
- 0.9 x 2.4 x 2 in (2.4 x 6.1 x 5.2 cm)
- Receiver Unit Dimensions
- 0.9 x 2.4 x 2 in (2.4 x 6.1 x 5.2 cm)
- Product Length
- 8.4 in
- Side B Connectors
- HDMI (Male), Micro-USB B (Female), RJ45 (Female)
- Material
- PC (Polycarbonate)
- Storage Temperature Range
- -4 to 176 F (-20 to 80 C)
- Certifications
- TAA, CE, FCC, RoHS, REACH
- HDMI Specification
- 1.4
- Rackmountable
- No
Signal Range125 ft
3D Video SupportYes
Max Supported Color Depth24-bit True Color
Transmitter Unit Weight0.15 lbs (0.07 kg)
Receiver Unit Weight0.15 lbs (0.07 kg)
Side A ConnectorsHDMI (Male), HDMI (Female), Micro-USB B (Female), RJ45 (Female)
Connector PlatingGold
Operating Temperature Range14 to 167 F (-10 to 75 C)
Relative Humidity0% to 85%, Non-Condensing
HDCP Specification1.4
LED IndicatorsGreen (Power), Orange (Activity)
ColorBlack
