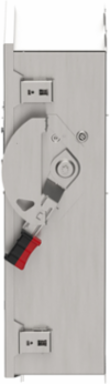

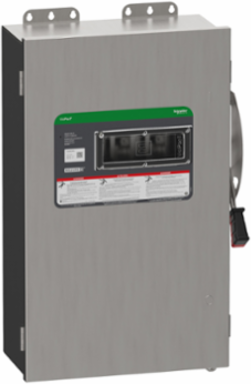

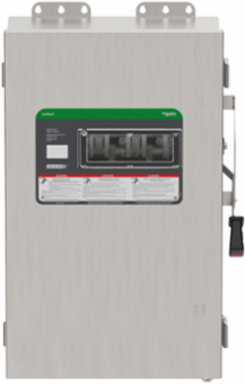

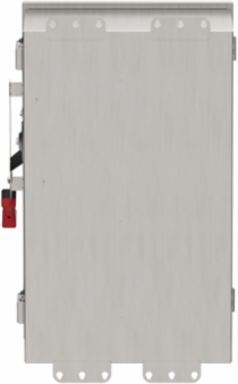

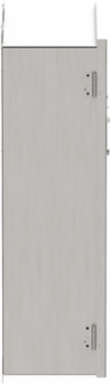

Square D VH364DSGL Heavy Duty Safety Switch, 200A, 3-Pole, NEMA 4X, 600V
- MPN: VH364DSGL
- PPN: SCH-VH364DSGL
CAD
$4900.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for reliability in demanding environments, this heavy-duty safety switch by Schneider Electric offers essential protective capabilities for industrial applications. With a robust 200A capacity and a three-pole configuration, it ensures efficient power management and safe operation in a wide range of settings. The NEMA 4X rating guarantees exceptional resistance to water and dust, making it suitable for both indoor and outdoor use, even in harsh conditions. Designed with safety and performance in mind, this switch is an indispensable component for anyone looking to enhance electrical reliability and protection.
Features
- Rated for a continuous 200 Amps at 600V AC or DC, this 3-pole, single-throw VisiPacT safety switch provides severe-duty isolation. For industrial facility manager setups, it delivers massive motor-handling capacity up to 50 HP at 480V/600V standard, or up to 125 HP (at 480V) and 150 HP (at 600V) under maximum-tier inductive running parameters, safeguarding large motor control networks effortlessly.
- Housed in a premium, high-grade 304 stainless steel enclosure, this unit carries an official NEMA Type 4x safety perimeter rating.
- Built as a highly versatile fusible disconnect, this safety switch carries a base short-circuit current rating (SCCR) of 10 kA when using standard Class H, J, R or K fuses. However, by adding factory fuse rejection clips, the assembly is field-upgradable to handle a massive 200 kA fault capacity when paired alongside high-performance Class R or Class J fuses, preventing catastrophic mechanical enclosure failures.
- The interior features heavy-duty mechanical connection lugs that anchor copper or aluminum conductors ranging from AWG 6 up to 250 kcmil. To maintain a code-compliant, gas-tight electrical contact that withstands natural conductor thermal cycles, all lug connection screws must be tightened to the exact factory specification of 275 lbf-in (31.07 N-m).
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips; 200 kA for R with fuse rejection clips; 200 kA for J
- Motor Power
- 40 to 150 Hp at 250-600 V AC/DC
- Disconnector Device Type
- Fusible disconnect
- Mounting Type
- Surface
- Wiring Configuration
- 3-wire
- Tightening Torque
- 275 lbf.in (31.07 N.m)
- Width
- 17.474 in (444 mm)
- Net Weight
- 25.85 kg (56.99 lb)
- Device Composition
- Field installed kit available
- Certifications
- UL Listed file E2875
- Series Name
- Heavy duty
Current Rating200 A
Number of Poles3
Device ApplicationHeavy duty
Fuse TypeH or K, R or J
Electrical ConnectionLugs
Wire SizeAWG 6...250 kcmil copper or aluminum
Height28.9 in (734 mm)
Depth8.937 in (227 mm)
Enclosure RatingNEMA 4X stainless steel 304
Country of OriginUS
RoHS ComplianceCompliant
