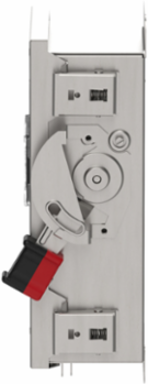

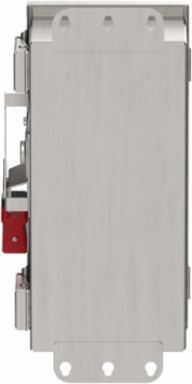

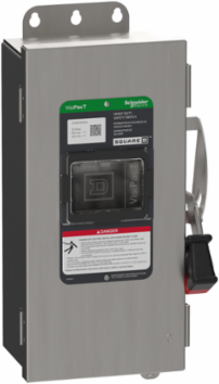

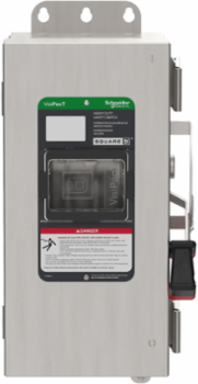

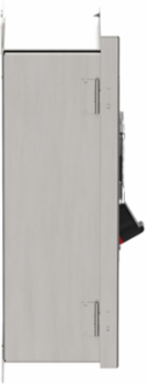

Square D VH361DSGL Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 30A, 3 pole, ground lugs
Square D VH361DSGL Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 30A, 3 pole, ground lugs
- MPN: VH361DSGL
- PPN: SCH-VH361DSGL
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1727.46/ EA
Description
Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 30A, 3 pole, ground lugs
Specifications
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4X stainless steel 304
- Product Or Component Type
- Single Throw Safety Switch
- Device Application
- heavy application
- [Ue] Rated Operational Voltage
- 600 V AC/DC
Disconnector Device Typefusible disconnect
[In] Rated Current30 A
Device Compositionfield installed kit available
Number Of Poles3
Complementary
- Height
- 14.93 in
- Tightening Torque
- 45-45 lbf.in 13.3-13.3 mm² AWG 6) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 35-35 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Fuse Type
- H or K || R or J
- Electrical Connection
- lugs
- Wiring Configuration
- 3-wire
- Depth
- 5.384 in
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Device Mountingsurface
Condition Of Usesuitable service entrance for USA || suitable service entrance for Mexico
Servicesfactory installation
Awg GaugeAWG 12...AWG 6 aluminum || AWG 14...AWG 6 copper
Width7.22 in
Net Weight6 kg
Offer Sustainability
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2303036EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Environment
- Product Certifications
- UL listed file E2875
