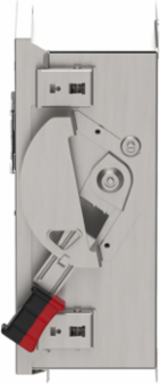

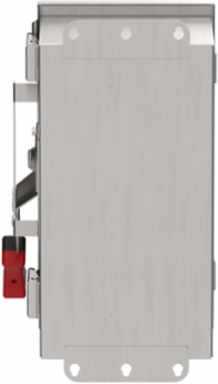

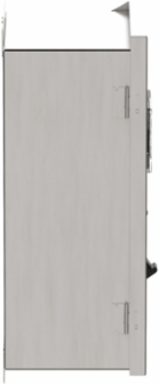

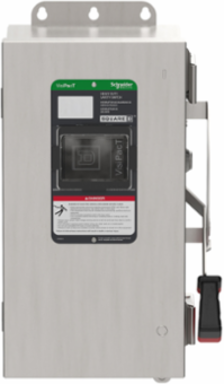

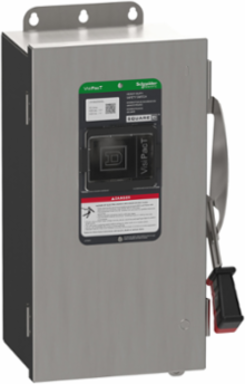

Square D VHU362SSGL Heavy Duty Safety Switch 3 Pole 60A 600V NEMA 4X 9 kg
- MPN: VHU362SSGL
- PPN: SCH-VHU362SSGL
CAD
$2478.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust power management, this heavy-duty safety switch from Schneider Electric features a three-pole configuration with a capacity of 60A and can handle voltages up to 600V. Designed specifically for industrial applications, it meets NEMA 4X standards, ensuring excellent resistance against dust and moisture, which is crucial in demanding environments. This safety switch combines reliability with efficient disconnecting capabilities, making it an essential component for effective power distribution and equipment protection in various settings.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 60 A
- Motor Power
- 10 Hp at 240V AC 1 phase, 20 Hp at 240V AC 3 phase, 25 Hp at 480V AC 1 phase, 50 Hp at 480V AC 3 phase, 30 Hp at 600V AC 1 phase, 60 Hp at 600V AC 3 phase, 10 Hp at 250V DC, 30 Hp at 600V DC
- Duty Rating
- Heavy duty
- NEMA Degree of Protection
- NEMA 4X stainless steel
- Electrical Connection
- Lugs
- Wire Size Range
- AWG 14...AWG 3 copper, AWG 12...AWG 3 aluminum
- Width
- 8.92 in
- Height
- 16.93 in
- Product Type
- Single Throw Safety Switch
- Certifications
- UL listed file E2875
- Reach Free of SVHC
- Yes
- Country of Origin
- US
- Device Application
- Heavy application
Voltage600 V AC/DC
Number of Poles3
Disconnect TypeNon-fusible
Mounting TypeSurface
Wiring Configuration3-wire
Tightening Torque40-50 lbf.in
Depth7.26 in
Net Weight9 kg
Device CompositionField installed kit available
RoHS ComplianceCompliant
Reach RegulationFree of Substances of Very High Concern above threshold
Series NameHeavy duty
Condition of UseSuitable service entrance for USA, Mexico
