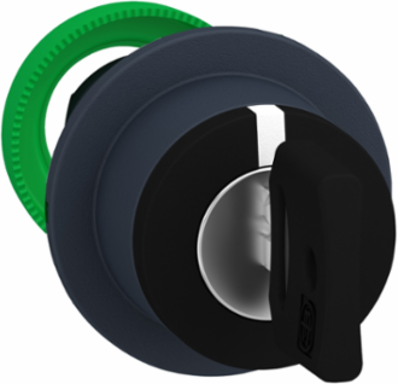

Schneider Electric ZB5FG06D Harmony XB5 30mm Flush Mounted Key Selector Switch Head, IP66/IP67/IP69
- MPN: ZB5FG06D
- PPN: SCH-ZB5FG06D
CAD
$204.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 30mm key selector switch head, dom 8d1 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Key Withdrawal Position
- center
- Range Of Product
- Harmony XB5
- Operator Profile
- black key switch
- Mounting Diameter
- 30.5 mm
- Product Or Component Type
- head for key selector switch
- Device Short Name
- ZB5
- Head Type
- built-in-flush
Sale Per Indivisible Quantity1
Bezel Materialdark grey plastic
Operator Position Information3 positions +/- 45°
Type Of Operatorleft to centre spring return
Shape Of Signaling Unit Headround
Type Of KeylockDom 8D1
Complementary
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 37 mm
- Net Weight
- 0.069 kg
Electrical Composition CodeC4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting
Cad Overall Depth72 mm
Cad Overall Height37 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- BV || LROS (Lloyds register of shipping) || GL || UL listed || DNV || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class II IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of ProtectionIK03 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsUL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
