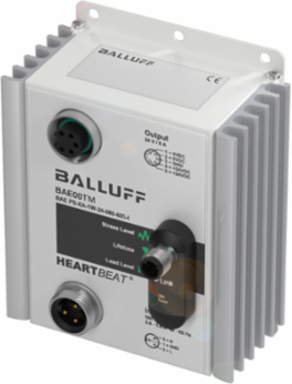

Balluff BAE PS-XA-1W-24-080-605-I Heartbeat Power Supply, 24V, 8A, IP67, Aluminum Housing
Balluff BAE PS-XA-1W-24-080-605-I Heartbeat Power Supply, 24V, 8A, IP67, Aluminum Housing
- MPN: BAE PS-XA-1W-24-080-605-I
- PPN: BAL-BAE00TM
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1129.33/ EA
Description
The Heartbeat Power Supply from Balluff is engineered for reliability and performance, providing a steady 24V output with a robust 8A current rating. Housed in a durable aluminum casing with an IP67 rating, it ensures protection against dust and water ingress, making it ideal for challenging industrial environments. With a compact design measuring 116 x 85 x 150 mm, this power supply features convenient 7/8" connections for both input and output, and can handle input voltages ranging from 100 to 240 VAC. Its ability to deliver a maximum output current of 12 A for short durations makes it a versatile choice for various applications, while the wide operating temperature range of -25 to 70 °C ensures reliable performance in extreme conditions.
Specifications
- Voltage
- 24 V
- Output Current Max.
- 12 A for max. 4s
- Output Capacity Max.
- 192 W
- Dimension
- 116 x 85 x 150 mm
- Connection (Supply Voltage OUT)
- 7/8"-Female
- IP Rating
- IP67, with connector
- Fastening Detail
- Flange mounting
Rated Output Current8 A
Input Voltage100–240 VAC, Single phase
Operating Temperature Range-25 to 70 °C
Connection (Supply Voltage IN)7/8"-Male
Housing MaterialAluminum, PC
Approval/ConformityCE; IO-Link; WEEE
Country of OriginHungary
