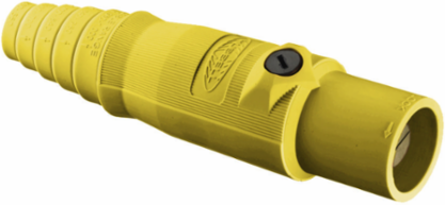

Bryant HBL300MY Heavy Duty Male Plug, 300A, 600V AC/DC, Yellow, Insulgrip Housing
Bryant HBL300MY Heavy Duty Male Plug, 300A, 600V AC/DC, Yellow, Insulgrip Housing
- MPN: HBL300MY
- UPC: 783585112152
- PPN: HBL-HBL300MY
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$69.65/ EA
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Yellow
Features
- Insulgrip® Style Housing for Superior Gripping
- Non-Conductive Retaining Screw locks contacts in place
- Large Raised Alignment Arrow aids in the mating of devices
Specifications
Specifications
- Country of Origin
- CN
- Width
- 2.500 in
- Industry Standard(s)
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Amperage Rating
- 300 A
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Voltage Rating Description
- 600V AC/DC
- Description - Invoice
- SINGLEPOLE, 300A MALE PLUG, YELLOW
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 39.900 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.500 in
- Pallet Weight
- 1995.000 lb.
Current / Amperage Rating300 A
Each - Width2.500 in
PerformanceElectrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #6 to 2/0 AWG
ColorYellow
TypePlugs
StyleMale
Freight Class Code06168002
Image Actual Or RepresentativeA
Series16 Series
BOX SIZE9.300x14.800x12.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585112152
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585112151
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
