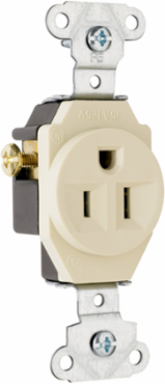

Pass & Seymour 5251LA 15A 125V Heavy-Duty Spec-Grade Single Receptacle, Side Wire, Light Almond, 1.38 Inch Width, 1.08 Inch Depth
- MPN: 5251LA
- UPC: 785007525120
- PPN: P-S-5251LA
CAD
$20.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Heavy-Duty Spec-Grade Single Receptacle, Side Wire, Light Almond, 1.38 Inch Width, 1.08 Inch Depth
Features
- Auto-ground clip assures positive ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.08 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Standard
- UL 498
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Features
- Heavy Duty Steel Mounting Strap
- Special Features
- Auto ground clip, back & side wire, zinc steel strap
Width1.38 in
Country of OriginMexico
Amperage15.0 A
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Operating Temperature-40°-60°C
